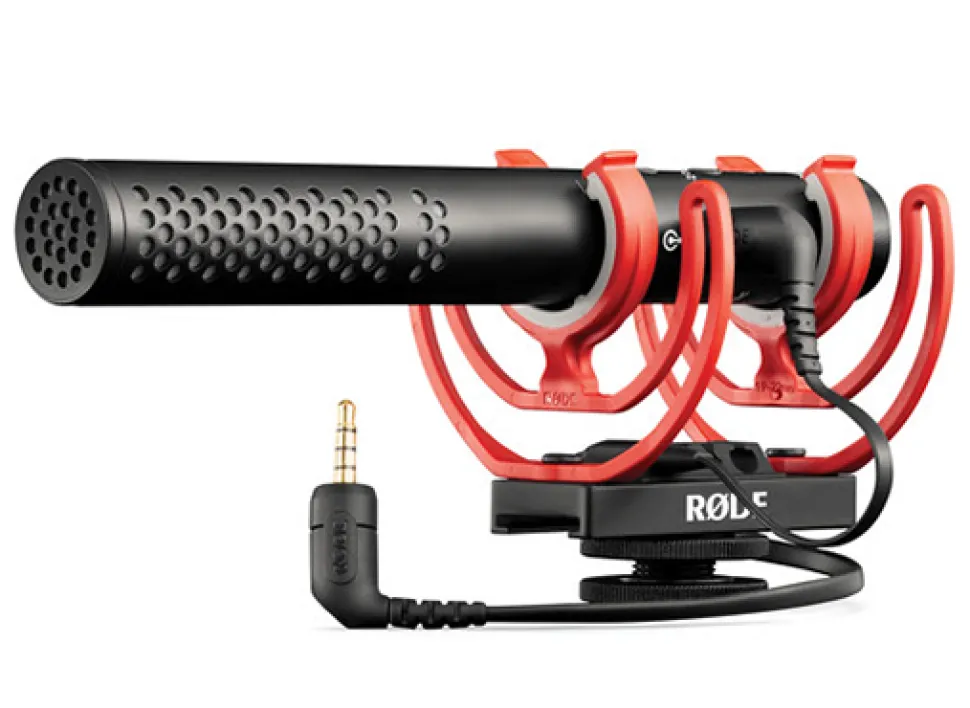

VideoMic NTG Hybrid Analog/USB Shotgun Microphone

AT A GLANCE

• Form Factor Stand/Boom Mount
• Sound Field Mono
• Operating Principle Pressure Gradient
• Capsule Electret Condenser
• Polar Pattern Supercardioid
• Orientation End Address
• Circuitry Solid-State
• Pad -20 dB
• High-Pass Filter 75 Hz, 150 Hz
• Tone Adjustment High Boost
• Gain Adjustment Yes
• Indicators 1 x Single LED (Power), 1 x Single LED (Clip), 5 x Single LED (Status)
• On-Board Controls Gain, High-Pass Filter, HF, Pad, On/Off
• Windscreen Foam (Included)

  Performance

• Frequency Range 20 Hz to 20 kHz, 35 Hz to 18 kHz ±3 dB
• Maximum SPL 120 dB SPL (1% THD)
• Impedance 10 Ohms
• Sensitivity -26 dBV/Pa at 1 kHz
• Dynamic Range 105 dB A-Weighted
• Signal-to-Noise Ratio 79 dB A-Weighted
• Equivalent Noise Level 15 dB A-Weighted

  Connectivity

• Output Connectors (Analog) 1 x 1/8″ / 3.5 mm TRRS Female (on Mic)
• Output Connectors (Digital) 1 x USB Type-C Female (on Mic)
• Wireless Connectivity None

  Digital Audio

• A/D Conversion 24-Bit
• Sample Rate 48 kHz
• Digital Signal Processing None
• Internal Memory None
• Operating System Support Android, Windows, iOS, macOS/OS X
• Available Port USB (Interface Unspecified)

  Power

• Bus Power USB
• Battery Type 1 x Built-In
• Battery Chemistry Lithium-Ion
• Battery Capacity 350 mAh
• Approximate Battery Life 30 Hours
