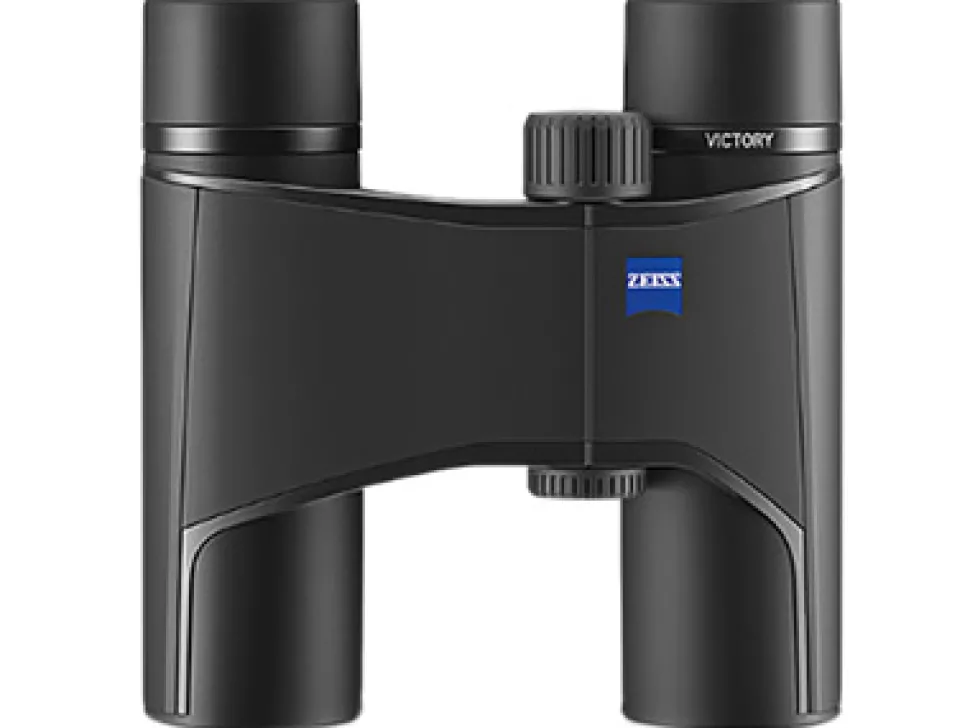

Victory 10×25 B T-star FL P Pocket Binocular

The Victory Compact 8×20 fits into a shirt or jacket pocket and it delivers breathtaking views.

AT A GLANCE

• Extra Low-Dispersion Fluoride Glass
• Phase-Corrected Schmidt-Pechan Prisms
• T* Fully Multi-Coated Optics
• Protective LotuTec Lens Coatings
• Wide 60° Apparent Angle of View
• Nitrogen-Filled, Water and Fogproof
• Asymmetric Closed-Bridge Configuration
• Lightweight Magnesium-Alloy Chassis
• Off-Center Knurled Focusing Wheel
• Twist-Up Eyecups

DESCRIPTION

Building on the success of the 20mm version, the larger-objective ZEISS 10×25 Victory Pocket Binocular is engineered with improved performance — including a wider field of view and exit pupil, with a longer eye-relief, to boost its overall performance and handling. Complementing these improvements is a moderate magnification that brings subjects in-close without the associated visible hand-shake common in higher-power optics to provide users with an immersive observational experience.

This larger-objective model maintains the optical technology of earlier iterations to ensure the overall visual performance users have come to expect from ZEISS. The optical path features phase-corrected Schmidt-Pechan roof prisms with dielectric mirror coatings. These prisms maximize acuity and light throughput while eliminating aberrations and distortion. The lenses are fully multi-coated with ZEISS’ iconic T* anti-reflective multi-coatings and their LotuTec protective coating. T* multi-coatings increase light transmission while eliminating lens-flare and glare, while improving colour rendition, clarity, and contrast. The LotuTec coating helps maintain the integrity of each external lens surface by repelling liquids and debris for a clear view in any conditions, weather, or situation.

The Victory’s housing is made of a lightweight and strong magnesium alloy, wrapped in a protective rubber armour that provides a slip-resistant grip. Its optical tubes are nitrogen-filled and O-ring sealed to deliver waterproof performance, while resisting internal fogging when moving through extreme temperature or environmental conditions. The distinctive offset hinge design provides a visibly unique and compact form-factor that is easy to adjust and use one-handed.

Optical Performance

• 10x magnification
• 25mm objective lenses
• Compact Schmidt-Pechan roof prism light path
• Phase-corrected dielectric mirror prism coatings limit internal diffraction to enhance clarity, light transmission, contrast
• Extra low-dispersion fluoride glass limits chromatic aberrations to produce clearer and sharper views with little or no colour fringing
• T* fully multi-coated optics improve light transmission, colour rendition, clarity, and contrast while reducing lens flare and glare
• LotuTec coating: Sheds water, dirt, grease, and grime: lenses can be easily wiped clean without smearing
• Wide 60° apparent angle of view
• 316′ field of view at 1000 yards

Use and Handling

• Closed-bridge/single-hinge configuration
• Fast and accurate center focusing wheel
• ±3 right-eye dioptric correction
• Broad 34-74mm interpupillary adjustment range to accommodate a wide variety of users
• Twist-up rubber eyecups for comfortable use with or without eyewear
• Long 16.5mm eye relief
• 2.5mm exit pupil

Construction Details

• Unique asymmetrical offset hinge allows the binocular to fold flatter and more compact than traditional center-hinge configurations
• Prism design is slimmer than traditional roof prisms providing similar performance with thinner optical tubes
• Impact-resistant and lightweight magnesium-alloy chassis
• Nitrogen-filled and O-ring sealed to waterproof, and resistant to internal fogging when moving through extreme temperature and environmental conditions
• Protective rubber armouring provides a secure no-slip grip
• Wide -13 to 145°F (-25 to 63°C) operating temperature
• Compact: 4.4×4.3″
• Lightweight: 10 ounces

  SPECIFICATIONS

  Prism Type Roof
  Magnification 10x
  Objective Lens Diameter 25mm
  Angle of View 6.0° (actual)
  Field of View 315.0′ @ 1000 yd / 105.0 m @ 1000 m
  Minimum Focus Distance 6.2′ / 1.9 m
  Exit Pupil Diameter 2.5 mm
  Eye Relief 16.5 mm
  Interpupillary Adjustment 34.0 – 74.0 mm / 1.3 – 2.9″
  Dioptric Correction ±3
  Focus Type Center
  Tripod Mount None
  Dimensions 4.4 x 4.3″ / 11.2 x 11.0 cm
  Weight 10.23 oz / 290.0 g
  Package Weight 2.5 lb
  Box Dimensions (LxWxH) 11.4 x 7.2 x 3.4″
