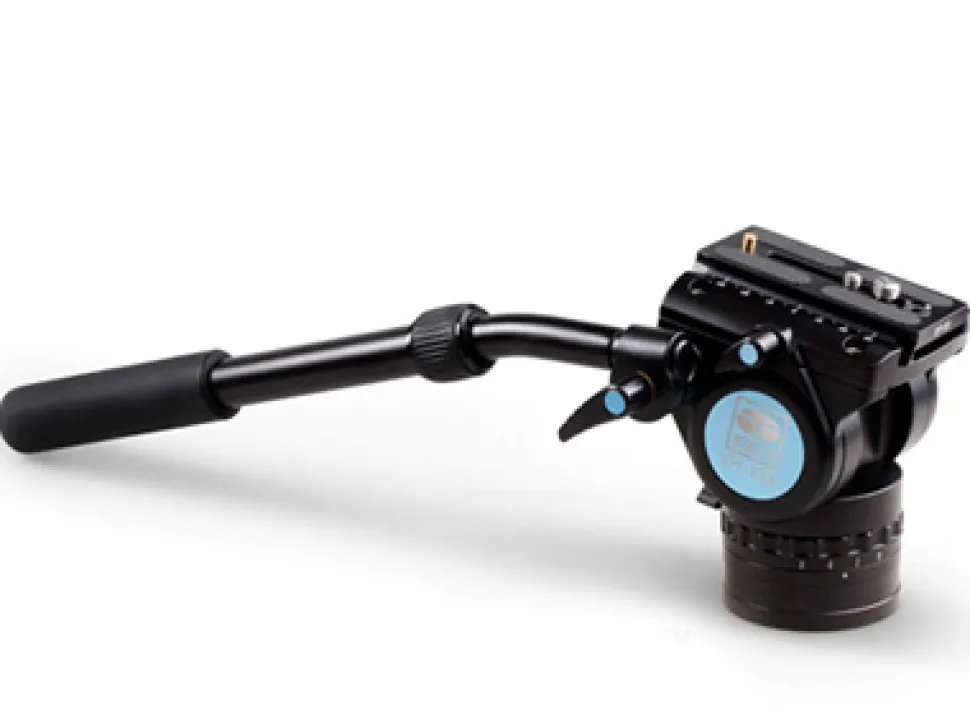

VH-10X Fluid Video Head Aluminum

AT A GLANCE

• Maximum Load 6kg
• Safety Lock System
• 90mm Quick Release Plate Slide
• 360° Panorama Panning
• 2 x Bubble Levels

DESCRIPTION

With a maximum load of 6kg, this fluid-damped video tilt head is designed for DSLRs and video cameras. Thanks to the fluid damping system with separate control for pan, a smooth, quiet and vibration-free camera use is possible.

The friction of the tilt movement can be continuously adjusted. The pan movement can be locked and the pan friction can be adjusted in 4 stages. The head operates exceptionally smoothly and can be precisely adjusted. It is intuitive to operate and direct. The Safety Lock System prevents the release plate from accidentally slipping.

• Spirit levels are located on the top and bottom for precise alignment.
• 3 stage friction control for panning, plus a 0 position with no friction
• Sophisticated fluid damping system allows vibration-free use
• Safety Lock System – prevents the plate from accidentally slipping
• Continuously adjustable friction for tilt
• 360° panorama panning
• 2 spirit levels
• Rubber covered handle – extends from 30cm to 47cm
• Sliding release plate (90mm) with 1/4 inch and 3/8 inch thread
• Compatible for video tripods with a head surface area of at least 65mm
• Tripod connection: 3/8 inch thread

SPECIFICATIONS

Tilt -65° to +90°
Counterweight 2kg
Quick release plate slide 90mm
Base plate diameter 65mm
Handle length from 30cm to 47cm
Material Aluminium
Max. load 6kg
Size LxWxH (with handle) 93 (370) x 145 x 96mm
Weight 920g
