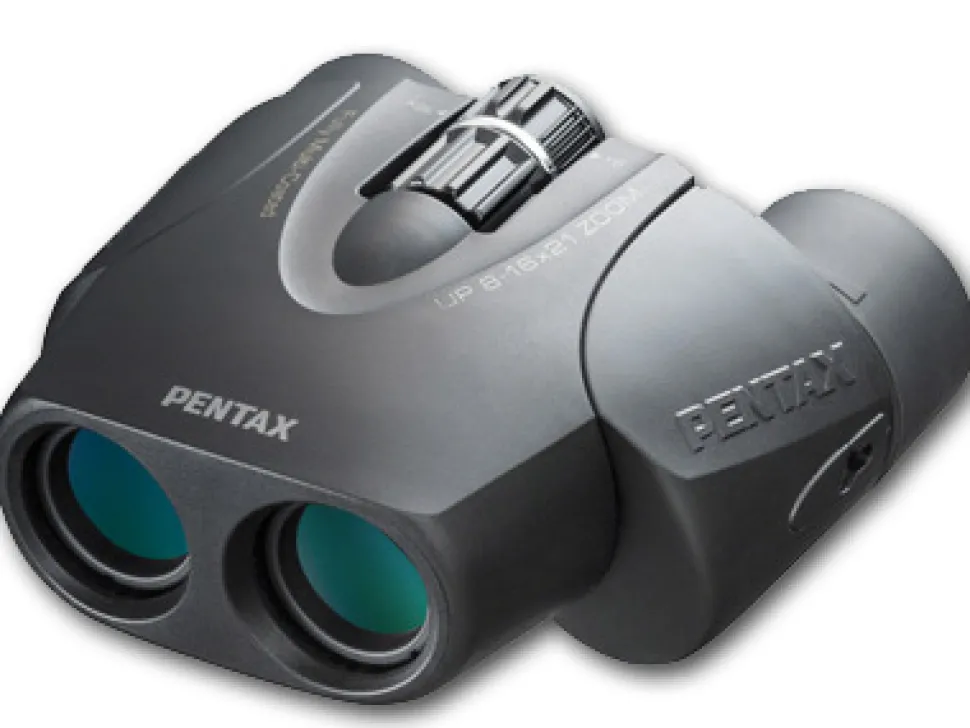

UP 8-16×21 Zoom Porro Prism Binoculars Black

PRODUCT FEATURES

• Aspherical Lens Elements
• BAK4 Porro Prisms
• Fully Multicoated Optics
• 8-16x Optical Zoom
• Angle of View Range: 5-3°
• Center Focusing
• Sliding Eyecups
• 1/4″-20 Tripod Socket

OVERVIEW

The compact and lightweight black 8-16×21 UP Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a wide angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With an 8-16x range of magnification and 21mm objectives, you obtain a wide zooming range and a compact form factor. You can easily spot your targets with a 5° angular field of view at 8x magnification and quickly zoom in on them with the optical zoom. To reduce image jitter at high zoom factors or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4″-20 socket. In addition to observing distant scenes, birds and game, the minimum focus of 9.9′ allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 2.6-1.3mm exit pupil range, a 14-11mm eye relief range, an interpupillary and a diopter adjustments.

The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eye glasses wearers, the binocular offers sliding rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers.

Optical Performance

• Optical zoom range: 8-16x
• BAK4 Porro prisms
• Aspherical optical elements offer edge-to-edge image sharpness
• Fully multicoated optics
• Angular field of view range: 5-3°
• Interpupillary adjustment
• Diopter adjustment

Construction Details

• Single piece objectives’ frame allows for a synchronized interpupillary adjustment
• Contoured body provides a comfortable grip
• Centre focus knob offers an easy focusing
• Sliding rubber eyecups
• 1/4″-20 tripod socket

SPECIFICATIONS

Prism Type Porro
Magnification 8-16x
Objective Lens Diameter 21 mm
Angle of View 8x: 5° (actual) 16x: 3° (actual)
Field-of-View 8x: 261′ @ 1000 yd / 86.65 m @ 1000 m 16x: 156′ @ 1000 yd / 51.79 m @ 1000 m
Minimum Focus Distance 9.9′ / 3.02 m
Exit Pupil Diameter 8x: 2.6 mm 16x: 1.3 mm
Eye Relief 8x: 14 mm 16x: 11 mm
Focus Type Centre
Tripod Mount Yes
Dimensions 4.37 x 4.37 x 2.1″ / 11.10 x 11.10 x 5.33 cm
Weight 10.9 oz / 309 g
