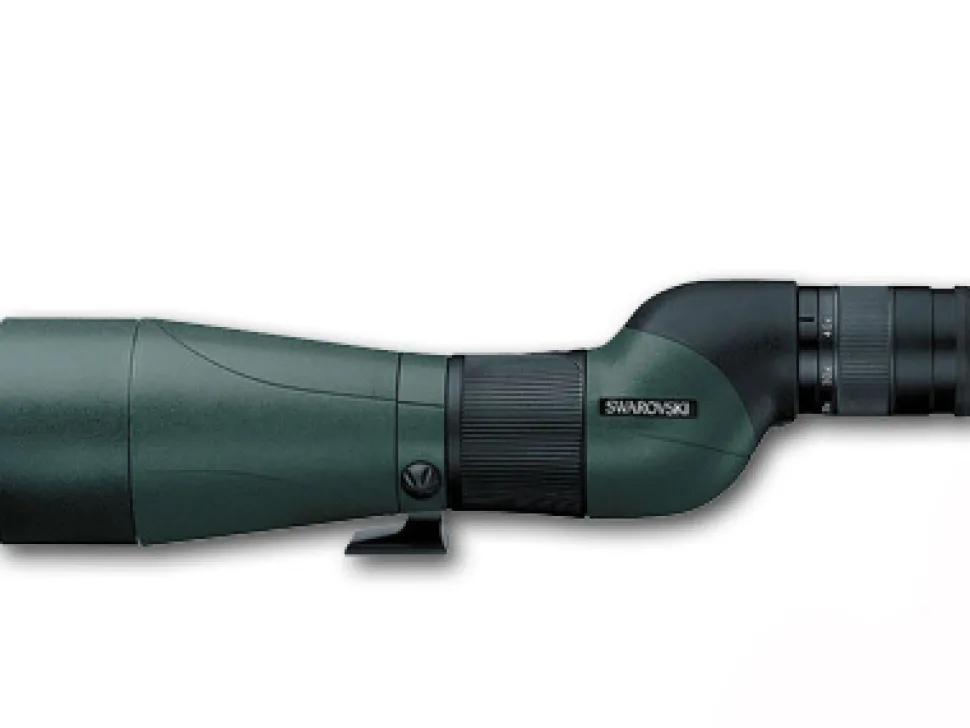

STS-80 HD Straight Scope w/25-50x Eyepiece Kit

Two great Swarovski productions in one package.

Product Highlights

• Straight Viewing
• 25-50x Magnification Eyepiece
• Apochromatic HD Fluoride Glass Elements
• SWARODUR/SWAROTOP High-Contrast Coatings
• Weatherproof/Fogproof Construction
• Lightweight Aluminum Housing
• Integrated Tripod Collar
• Rubber Armoured Exterior
• Made in Austria

Overview

The STS-80 25-50x 80mm HD Spotting Scope with Eyepiece (Straight Viewing) from Swarovski is a rugged yet refined scope from one of the world’s most renowned optics manufacturers. The STS series combines the unmatched image quality and world-class workmanship that nature enthusiasts, tactical professionals, and researchers have come to expect from Swarovski. The 80mm configuration is compact, relatively lightweight, and particularly well-suited for the hunter or birdwatcher on-the-go.

Swarovski’s proprietary SwaroVision technologies redefine the standard for optical excellence. Fluoride-containing HD elements are the core of the STS series spotting scopes. These premium-glass elements efficiently transmit all wavelengths of visible light, resulting in bright images that are colour-faithful, crisp, and rich with detail. SWARODUR and SWAROTOP coatings on all lenses and prisms minimize glare while maximizing contrast. Phase-corrected prisms ensure that images are rendered with unsurpassed clarity. Perfecting the optical path is a SwaroVision field flattener lens that eliminates geometric optical distortion throughout the zoom range. Field flattener lenses reduce barrel and pincushion artifacts common in wide angle and telephoto optics while preserving clarity and sharpness along the edges of the field of view.

Optional digiscoping accessories from Swarovski allow operators to transform their STS spotting scope into a formidable digital imaging platform. These accessory adapters enable integration with point-and-shoot, mirrorless, and DSLR camera systems, and feature the build-quality and thoughtful engineering you expect from Swarovski. Now your superior optics can be used to capture high-definition stills and video of that rare bird or butterfly in your sight. A removable sighting aid acts as an auxiliary scope for easy target acquisition while a camera is mounted to the eyepiece.

Ergonomic handling and user-friendly functionality package the STS premium optics into a full-featured glassing system. An included 25-50x eyepiece features a wide viewing angle and generous eye relief, making the STS an observer’s delight and nothing less than you expect from Swarovski. The eyepiece quickly attaches/detaches from the objective assembly’s bayonet mount for easy disassembly, transportation, and storage. The nitrogen purged, o-ring sealed, and rubber armoured housing ensure waterproof, fogproof, and shockproof performance in almost any environment. Whether you are in the wild, on the battlefield, or at the range, the STS spotting scope is engineered to deliver world-class performance in extreme conditions for years to come.

Optical Performance

• 80mm objective diameter
• 25-50x zoom eyepiece
• Angle of view: 70-60°(apparent), 2.4-1.55°(actual)
• Fluoride-containing apochromatic HD glass elements
• SWARODUR and SWAROTOP high-contrast optical coatings
• Field flattener lens eliminates geometric optical distortion and preserves edge sharpness
• Phase-corrected roof prisms

Construction

• Lightweight and rugged aluminum housing
• Supple yet durable rubber armored exterior
• Nitrogen-purged interior for waterproof/fogproof performance
• -13 to 131°F (-25 to 55°C) operating temperature
• Submersible to 13 ft (4 m)

Functionality

• Wide angle of view and extra-long eye relief
• Click-stop twist-in eyecup
• Removable sighting aid
• Angled viewing configuration
• Ergonomic and oversized focus wheel
• Integrated tripod collar for convenient mounting
• Digiscoping compatible with point-and-shoot, mirrorless, and DSLR cameras

Specifications

Magnification 25.0-50.0x
Objective Lens Diameter 80 mm
Field of View 138 – 89 ft (42 – 27 m) at 1000 yd
Angle of View 70-60°(apparent), 2.4-1.55°(actual)
Minimum Focus Distance 16.4 ft ( m)
Exit Pupil Diameter 3.2 – 1.6 mm
Eye Relief 17 mm
Diopter Correction greater than 5
Light Transmission 86%
Filter Thread M 82 x 0.75
Weatherproofing Submersible to 13 ft (4 m)
Operating Temperature -13 to 131°F (-25 to 55°C)
Storage Temperature -22 to 158°F (-30 to 70°C)
Length 15.9″ (40.4 cm)
Weight 58.0 oz (1.64 kg)
