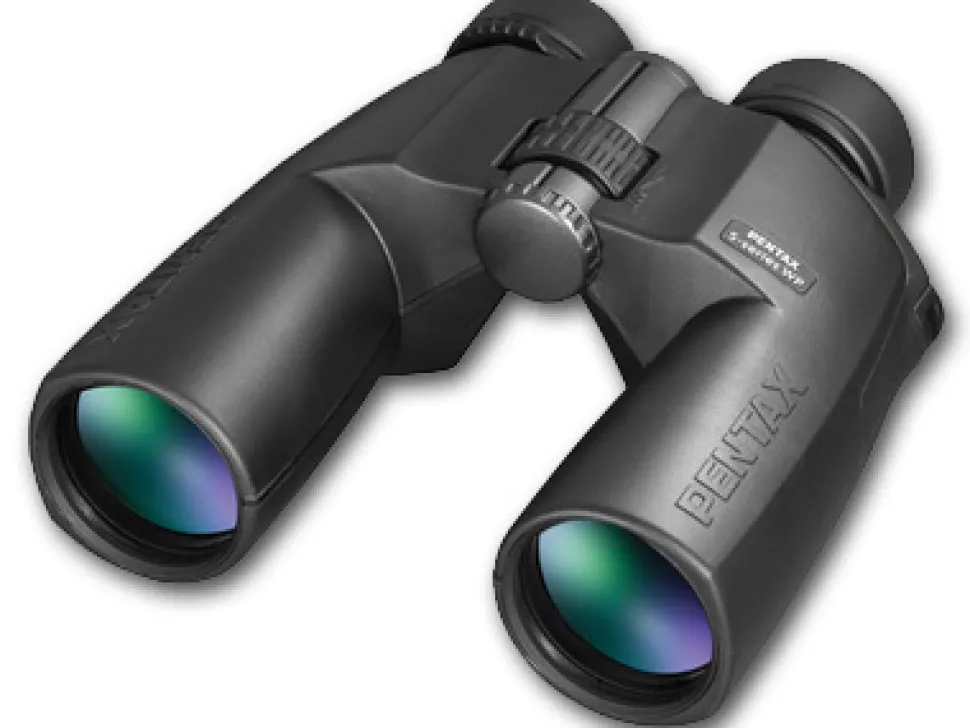

SP 20×60 WP Porro Prism Binoculars

PRODUCT FEATURES

• BAK4 Porro Prism
• Fully Multicoated Optics
• Angle of View: 44°
• Nitrogen-Filled, Water and Fogproof
• Closed Bridge Configuration
• Slip-Resistant Rubberised Armouring
• Large Centre Focus Wheel
• Tripod Mountable with Optional Adapter
• Fold-Down Rubber Eyecups

OVERVIEW

Designed for both astronomical and terrestrial use, Pentax’s 20×60 SP WP Binocular can be used with confidence in all weather and conditions. The large oversized 60mm objectives are fully multicoated to reduce reflection and maximize light transmission through the entire optical path. Utilizing the traditional porro prism configuration gives scenes a rich depth of view for an immersive observation experience and provides a comfortable feel in the hand with a lot of surface area to maintain a sure grip. The large objectives and coatings maximize the amount of light getting to the user’s eyes for exceptional low-light capabilities.

Complementing the optical performance are construction details made for the outdoors. The optical tubes are nitrogen-filled and O-ring sealed for fogproof performance and to make them submersible to as much as 3.3′. The binocular sports a generous 20mm eye relief and the fold-down eyecups seal against the ocular cavity to block stray peripheral light which can dim images and affect night-adjusted vision. Its over-sized objectives add weight and bias the center of gravity forward making user fatigue a concern and hand-shake a possibility, so to aid long observation sessions the binocular can be mounted on a tripod using an optional adapter..

Optical Performance

• 20x magnification
• 60mm objective lenses
• BAK4 Porro prism optical path
• Anti-reflection fully multicoated optics
• 115.5′ field of view at 1000 yards
• 44° angle of view

Use and Handling

• Closed bridge configuration
• Large knurled centre focus wheel
• Right-eye diopter adjustment
• 21mm long eye relief, 3.0mm exit pupil
• Fold-down rubber eyecups seal against ocular cavity and block stray peripheral light

Construction Details

• Rubberised armouring protects against impacts and provides slip-resistant grip
• Nitrogen-filled, fogproof and submersible to 3.3′ (1m)
• Internal focusing system helps to maintain waterproof seals
• Tripod mountable with optional adapter

SPECIFICATIONS

Prism Type Porro
Magnification 20x
Objective Lens Diameter 60 mm
Angle of View 2.2° (actual)
Field-of-View 115.5′ @ 1000 yd / 38.35 m @ 1000 m
Minimum Focus Distance 9.0′ / 2.74 m
Exit Pupil Diameter 3.0 mm
Eye Relief 21 mm
Focus Type Centre
Tripod Mount Yes (Adapter Optional)
Dimensions 8.8 x 7.7 x 3.4″ / 22.35 x 19.56 x 8.64 cm
Weight 49.4 oz / 1400 g
