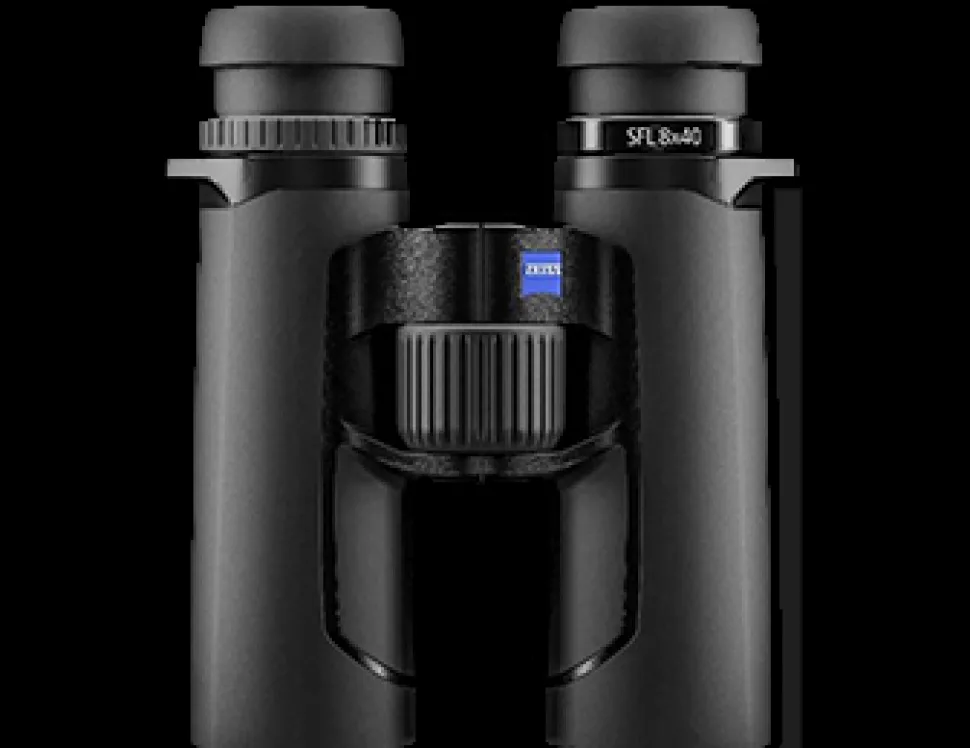

SFL 8×40 T* Ultra HD Binocular

AT A GLANCE

Lightweight and compact size for flexibility and convenient observation without muscle fatigue

Optical design devoted to optimal compactness due to:

• Reduced lens diameter
• Thinner lens elements
• Reduced distance between lens elements in the optical design
• Magnesium housing –lightweight and long-lasting

Great optical performance with UHD Concept

• New Ultra-High-Definition (UHD) concept –lifelike color reproductiondue to optimal combination of new lens coatings and optical design
• 90% light transmission
• Comfortable viewing and balance despite compact size –increases ease of use
• Wide field of view1: SFL 40 –140/115m
• Close focusing distance of 1.5m (4.9 feet)
• T* coating and LotuTec

Perfect ergonomics with SmartFocus Concept
Perfect positioning of largefocus wheel avoidingover-stretching of focusing finger
Fast but still precise focusing –even with gloves on

Removable, flip-down lens covers–can remainaffixed, or can be removed with ease
•Tripod interface –for a perfectly stable view duringlong-term observations
?Greaterflexibility for various field applications
•Neoprene Neck Strap and Carrying Case
•Removable and replaceable eye cups, same as Victory RF eye cups

Magnification 8
Effective lens diameter mm40
Exit pupil diametermm 5
Twilight factor 17.9
Field of viewm/1,000m (ft/1,000yds) 140 (420)
Subjective viewing angle ° 60
Close focusing distance m (ft)1.5 (4.9)
Diopter adjustment range dpt +-4
Exit pupil distance mm 18
Interpupillary distance (IPD) mm 52-74
Prism System Schmidt-Pechan
Coating T*
Nitrogen filling Yes
Water resistance mbar 400
Operating temperature °C (°F) -20/+55 (-4/+131)
Length mm (in) 144 (5.7)
Width at an interpupillary distance of 65 mmmm (in) 114 (4.5)
Weight g (oz)640 (22.6)
