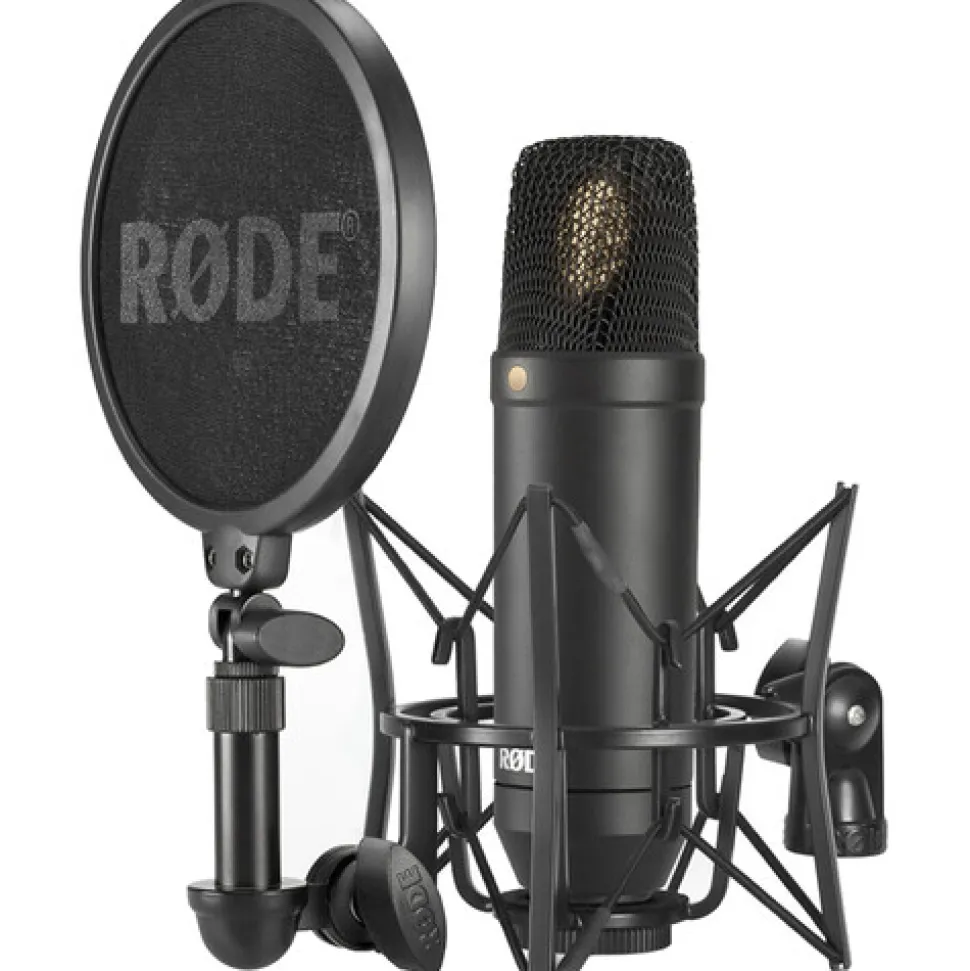

NT1-KIT Large-Diaphragm Cardioid Condenser Mic

AT A GLANCE

Combining a redesigned true condenser capsule, ultralow-noise transformerless circuitry, and an extremely durable housing, theRode NT1-KITlarge-diaphragm cardioid microphone is well suited for high-resolution digital recording of vocal and instrument sources at home, in the studio, or even on stage. Plus, its bundle of accessories—shockmount, pop filter, XLR cable, and dust cover—help the NT1-KIT serve singers, rappers, and podcasters especially well.

While the body of the NT1 still resembles the NT1-A, the mic has been completely revamped except for the mesh grille. It features Rode’s updated HF6 capsule, which is designed to provide a detailed midrange response with smooth highs and warm bass. The HF6 capsule is suspended inside the microphone using Rycote’s industry-leading Lyre system to help reduce vibration and handling noises. Also, with self-noise measured at only 4.5 dBA, the NT1 is an exceedingly quiet microphone. Since it can run on 24 or 48 VDC phantom power, the NT1 can be used with a variety of professional and entry-level XLR mic preamps

Tone Signature

It has been developed with a focus on detailed midrange response, coupled with silky smooth high frequencies, and warm, round bass reproduction to make the NT1 an absolute standout in its class.

Internally Shock-Mounted Capsule

The transducer itself is suspended inside the microphone using Rycote’s industry-leading Lyre system, minimizing external vibrations at the capsule level. The capsule is then married to high-grade electronics that have been designed to provide an extremely low noise level. The NT1 is an incredibly quiet microphone, measuring only 4.5 dBA of self-noise.

Durable Housing

The NT1’s body is machined from 6061 aluminum and then nickel plated for resistance against corrosion. Finally it is coated in a durable, military-grade ceramic layer, using advanced electrostatic application techniques developed by Rode to ensure an extremely hard wearing finish that is resistant to scratches or marks.

Bundled Accessories

The NT1 is supplied with the SM6, a high-quality suspension shockmount that provides isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. It includes a removable pop shield with two axes of adjustment and a telescopic arm for ultimate application versatility. The mic also comes with a balanced XLR microphone cable.

Features at a Glance

• Large 1″ capsule with gold-plated membrane
• Cardioid polar pattern rejects off-axis sound behind the mic
• Internal Rycote Lyre-based capsule shock-mounting system
• Ultralow-noise transformerless circuitry
• State-of-the-art, surface-mount electronics
• Heavy-duty matte black finish
• Gold-plated XLR output connector
• Operates on 24 or 48 VDC phantom power

Primary Applications Live Sound, Studio Recording

Form Factor Large Diaphragm Mic / Stand/Boom Mount

Intended Sound Sources Vocals, Speech/Voice Over, Instrument

Sound Field Mono

Operating Principle Pressure Gradient

Capsule 1 xCondenser

Diaphragm 1″ / 25.40mm

Polar Pattern Cardioid

Orientation Side Address

Circuitry Solid-State (JFET)

PadNone

High-Pass FilterNone

Tone AdjustmentNone

Gain AdjustmentNone

IndicatorsNone

On-Board ControlsNone

WindscreenNone

Frequency Range 20 Hz to 20 kHz

Maximum SPL 132 dB SPL

Impedance 100 Ohms

Sensitivity -29 dBV/Pa at 1 kHz

Output Level 8 mV (Max, 1 kHz)

Dynamic Range 128 dB

Signal-to-Noise Ratio 90 dB A-Weighted

Equivalent Noise Level 4.5 dB A-Weighted

Output Connectors (Analog)1 xXLR 3-Pin Male (on Mic)

Headphone ConnectorNone

Operating Voltage 24 V (Phantom Power)
48 V (Phantom Power)

Color Black

Mounting Shockmount (Included)

Included CaseNone

Included Filters Pop Filter

Construction Material Aluminum

Dimensions ø: 2 x L: 7.4″ / ø: 5 x L: 18.7cm

Weight 15.5oz / 440g
