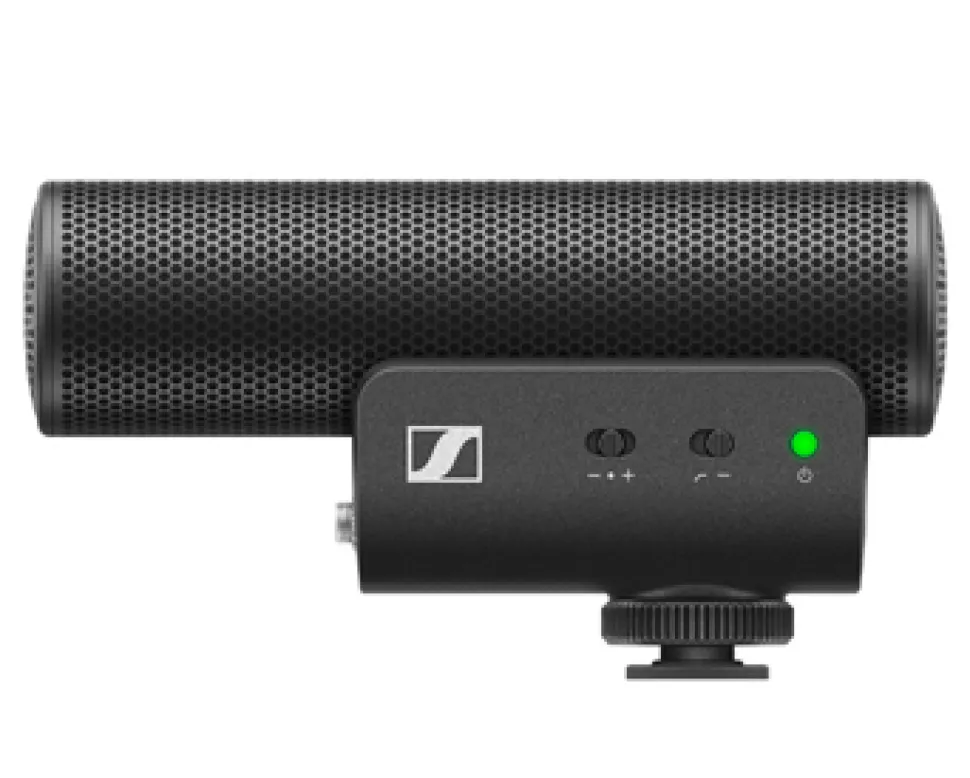

MKE 400 On-camera Shotgun Microphone

AT A GLANCE

• Key Features
  • Highly directional, super-cardioid shotgun microphone for isolated and
  enhanced in-camera audio
  • Integrated wind protection and internal suspension mount to minimize
  handling noise
  • Built-in low-cut filter and 3-step sensitivity switch for added flexibility and
  control
  • Integrated headphone output jack with volume adjustment for audio monitoring
  • Interchangeable 3.5 mm TRS and TRRS connectivity for DSLR/M cameras or
  mobile devices

Technical Specifications

• Transducer principle Pre-polarized condenser
• Frequency response 50 to 20,000 Hz
• Pick-up Pattern Super-cardioid
• Sensitivity at 1 kHZ
• -23 /-42 /-63 dB V/Pa
• Gain: -20 / 0 / +20
• Low cut filter roll-off 200 Hz
• Max. SPL at 1 kHz 132 dB SPL
• Power Supply Battery (2xAAA / LR03
• size, 1.5 V)
• Auto power function
• Plug-in power required (2-10 V)
• Operating Time >100 h* (*less with headphone connected)
• Low battery indicator >3 h of operating time
• Microphone output 3.5 mm locking jack
• Dimensions 126 x 67 x 37 mm
• Weight 93.5 g

Headphone Output

• Headphone Output 3.5 mm jack
• Min. headphone impedance 16 Ω
• Output power at 1 kHz
• 105 mW, 16 Ω headphone
• 70 mW, 32 Ω headphone
• Total harmonic distortion <1% at 50 mW
• Digital volume control 8 steps at 6dB each
