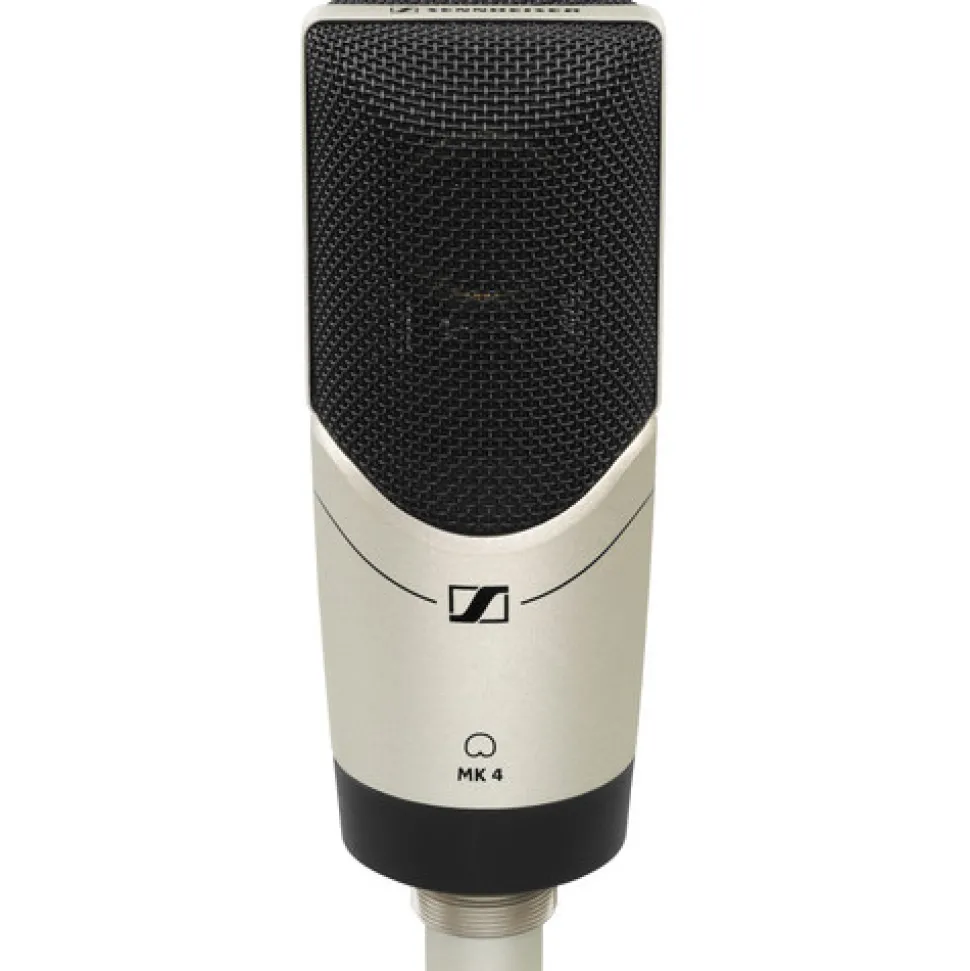

MK 4 Large-Diaphragm Cardioid Condenser Microphone

AT A GLANCE

Since it incorporates an internally shock-mounted capsule and a rugged metal housing, the MK 4 is not only an obvious choice for the studio, but also a dependable companion on stage.

The MK 4 features a large 1″ diaphragm plated in 24kt gold to enhance conductivity, resist corrosion, and yield a tone based on the e 965 vocal mic. The cardioid polar pattern strongly rejects sound behind the mic while picking up side-entry sound without coloration. The mic’s low-noise circuitry further solidifies it as a studio mic capable of meeting the demands of digital recording systems. Use an XLR mic cable (available separately) to connect the MK 4 to any mic preamp that can supply 48V phantom power.

Versatility Is King

From acoustic guitars to vocals and even drum overheads, the MK 4’s frequency response has been tailored to ensure a natural reproduction of the sound source, making it ideal for any home or project studio. It’s ability to accurately reproduce such a wide range of sounds is thanks mostly in part to its 1″ true condenser capsule, which is based on the acoustics of the e 965 high-end vocal mic. No frills, no gimmicks. Just solid engineering and an elegant design.

True Condenser Capsule

The MK 4 features a 24kt gold-sputtered diaphragm at the heart of its 1″ true condenser capsule. Gold is an excellent conductor for electrical signals and also prevents corrosion over time. Factor in the cardioid polar pattern and you’ve got a single microphone that’s ready to record anything you put in front it.

Cardioid Polar Pattern

The finest sound structures are well resolved, while sound coming from the sides is picked up without coloration, which means that it does not alter the overall sound quality. Furthermore, the microphone has a very harmonious presence, featuring vivid mids and is also highly detailed in the bass range. At the same time, typical cardioid cancellation is relatively frequency-independent, which is unusual for a large-diaphragm mic.

Sturdily Built

Despite its detailed and fine studio sound, the MK 4 mic is an incredibly rugged tool. The compact electronics, superior materials, and zinc die-cast casing ensure that the MK 4 is the perfect partner for rough recording environments.

Features at a Glance

• True condenser design with 1″ large-diaphragm capsule
• 24kt gold-plated diaphragm
• Rugged metal housing
• Internally shock-mounted capsule minimizes structure-borne noise
• Designed for project studios and stage use
• Low inherent self-noise (10 dBA) and high maximum SPL (140 dB)
• Balanced XLR 3-pin output connector
• Requires 48V phantom power
• Includes compact stand mount and drawstring pouch
• Made in Germany

Primary Applications Studio Recording

Form Factor Large Diaphragm Mic / Stand/Boom Mount

Intended Sound Sources Vocals, Speech/Voice Over, Overhead, Instrument

Sound Field Mono

Operating Principle Pressure Gradient

Capsule Condenser

Diaphragm 1″ / 25.40mm

Polar Pattern Cardioid

Orientation Side Address

Circuitry Solid-State

Pad None

High-Pass Filter None

Tone Adjustment None

Gain Adjustment None

Indicators None

On-Board Controls None

Windscreen None

Frequency Range 20 Hz to 20 kHz

Maximum SPL 140 dB SPL

Off-Axis Rejection 2 dB at 60°
12 dB at 120°
20 dB at 180°

Impedance 50 Ohms

Load Impedance 1000 Ohms

Sensitivity 25 mV/Pa

Dynamic Range 130 dB

Equivalent Noise Level 10 dB A-Weighted
20 dB CCIR

Output Connectors (Analog) 1 xXLR 3-Pin Male (on Mic)

Headphone Connector None

Bus Power None

Operating Voltage 48 V (Phantom Power)

Operating Current Consumption 3.1 mA

Color Silver

Mounting Mic Clip/Stand Adapter (Included)

Included Case Pouch

Included Filters None

Construction Material Die-Cast Zinc

Operating Temperature 32 to 72°F / 0 to 40°C

Storage Temperature -4 to 158°F / -20 to 70°C

Dimensions ø: 2.2 x L: 6.3″ / ø: 5.7 x L: 16cm

Weight 1.07lb / 485g
