Mic Mini Compact Wireless Microphone System for Camera & Smartphone

AT A GLANCE

• 1-Person Interviews, Videos, Streaming
• Connects to Cameras, iOS/Android Devices
• 1 x Clip-On Transmitter with Mic
• Compact Dual-Channel Receiver
• 2-Level Noise Cancelling
• Automatic Audio Limiting
• Safety Track, 5-Level Gain Adjustment
• Up to 1312′ Wireless Range
• Bluetooth Connectivity
• Built-In Rechargeable Batteries

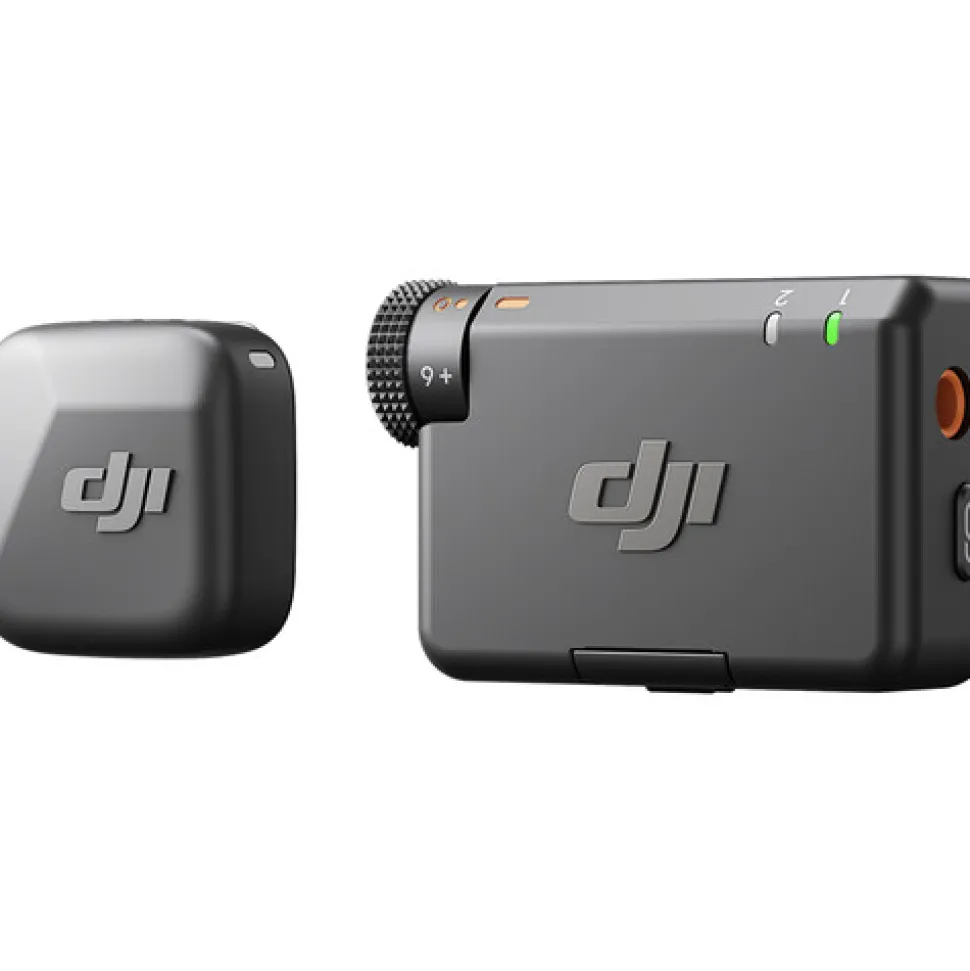

TheDJI Mic Miniis designed to help content creators record improved audio in their next vlog, livestream, or social media video. The system can communicate to your DSLR/mirrorless camera or iOS/Android smartphone via wired or wireless connectivity. It can record clear and reliable audio from an extended distance of 1312′ via miniature clip-on omnidirectional mic/transmitter. The tiny receiver can be mounted on your camera or plugged directly into the Lighting/USB port of a smartphone or laptop using the USB-C port or a separately available mobile phone adapter.

Wired and Wireless Connectivity

Much like the Mic 2, the Mic Mini features both 2.4 GHz digital wireless and Bluetooth technology. Bluetooth allows you to connect the transmitters to your DJI Mimo app via iOS or Android device. You can even connect directly to your Osmo Pocket 3, Osmo Action 4, or Osmo Action 5 Pro camera. Toggle different settings via the Mimo app like noise cancellation and audio limiting. Both 3.5mm TRS and USB-C connections are available on the receiver unit for connection to a wide range of devices. An included 3.5mm TRS Camera Audio cable facilitates camera connection and synchronizes the receiver’s power with that of the camera. When connected to your mobile device via USB-C, both the receiver and your smartphone can be charged simultaneously and clips can be reviewed using external playback.

Wireless Drone Recording

The Mic Mini is also wirelessly compatible with the DJI Neo drone using the DJI Fly app. Connect the Mic Mini to your smartphone’s Bluetooth and open the DJI Fly app for audio recording. The app also automatically eliminates propeller noise and merges the recorded audio with your footage.

Wearableand Portable Microphones

• For a truly wireless experience, conveniently attach the transmitter to whatever you’re wearing via the integrated back clip without having to wire yourself or your talent. Other wearing options include magnetic attachment and lanyard with separately available accessories.
• The transmitter weighs only 0.4 oz, ensuring it does not weigh down your collar or flip outward for a pleasing on-camera look.
• The built-in mic features an omnidirectional pickup pattern that ensures reliable speech capture, even if mic placement is less than ideal; your subject’s voice is captured with clarity, intelligibility, and consistency.
• Furry windscreens are provided to effectively suppress wind noise while still recording clear sound.

Intuitive Controls

• Use the onboard transmitter controls to toggle between the two levels of noise cancelling. Basic level is ideal for quiet indoor settings, reducing noises from fans, air conditioning units, and other reverb noises while preserving vocals. Strong level is ideal for noisy environments and cuts ambient noise for clearer vocals.
• Enable automatic limiting to lower the volume of your audio input, preventing clipping and ensuring reliable audio quality. This eliminates the need to adjust settings on the fly.
• When all else fails, you can quickly adjust five levels of gain using the dial on the receiver unit.
• Safety track recording is available when you anticipate possible interference, recording a second track 6 dB lower to ensure you have usable audio in fluctuating environments.

Extended Battery Life

Built-in rechargeable batteries on both the transmitter and receiver offer long operating times of 11.5 and 10.5 hours, respectively. Charge the units for just five minutes for an additional 1 hour of use when both are depleted with the included charging dock. In the DJI Mimo app you can toggle auto power off for the system, causing both devices to automatically shut down after 15 minutes if not connected, preserving your battery life.

Wireless Technology Digital 2.4 GHz

Included Transmitters 1x Clip-On with Microphone

Diversity Non-Diversity

Max Operating Range 1312.3′ / 400m

Max Transmitters per Band 2

Built-In Recorder No

Timecode Support No

Mobile App Compatible Yes: Android & iOS

Bluetooth 5.3

Modulation GFSK

Receiver Type Camera-Mount

Mounting Options Belt Clip (with Included Hardware)

Number of Audio Channels 2

Built-In Microphone No

Audio I/O 1x 1/8″ / 3.5 mm TRS Unbalanced Output

Network I/O No

USB/Lightning Connectivity 1x USB-C Female (Audio, Charging)

USB Class-Compliant Yes

Power Requirements Battery

Battery Type 1x Built-In Rechargeable

Internal Battery Capacity 170 mAh

Battery Charging Time 100 Minutes

Receiver Battery Life 10.5 Hours (Lithium Rechargeable)

DC Input Power 5 VDC

Display & Indicators LED

Operating Temperature 14 to 113°F / -10 to 45°C

Dimensions 1.8 x 1.2 x 0.8″ / 46.5 x 29.6 x 19.3mm

Weight 0.6oz / 17.8g

Transmitter Type Clip-On with Microphone

RF Output Power Not Specified by Manufacturer

Built-In Microphone Yes

Audio I/O No

Pad No

Auto-Level/Gain Yes

Sync Method 2.4 GHz QPSK

Power Requirements Battery

Battery Type 1x Built-In Rechargeable(Replaceable)

Internal Battery Capacity 114 mAh

Battery Charging Time 90 Minutes

Transmitter Battery Life 11.5 Hours (Lithium Rechargeable)

Display & Indicators LED

Operating Temperature 14 to 113°F / -10 to 45°C

Dimensions 1 x 1 x 0.6″ / 26.6 x 26.1 x 15.9mm

Weight 0.4oz / 10g

Microphone Type Built-In (Transmitter)

Color Black

Sound Field Mono

Polar Pattern Omnidirectional

Maximum SPL 120 dB SPL
