Mic Mini Clip-On Transmitter with Built-In Microphone

AT A GLANCE

• For Mic Mini, Osmo, or Mobile Device
• Built-In Microphone
• 1312′ Transmission Distance
• Bluetooth Connectivity
• Auto Power-Saving Sleep Mode

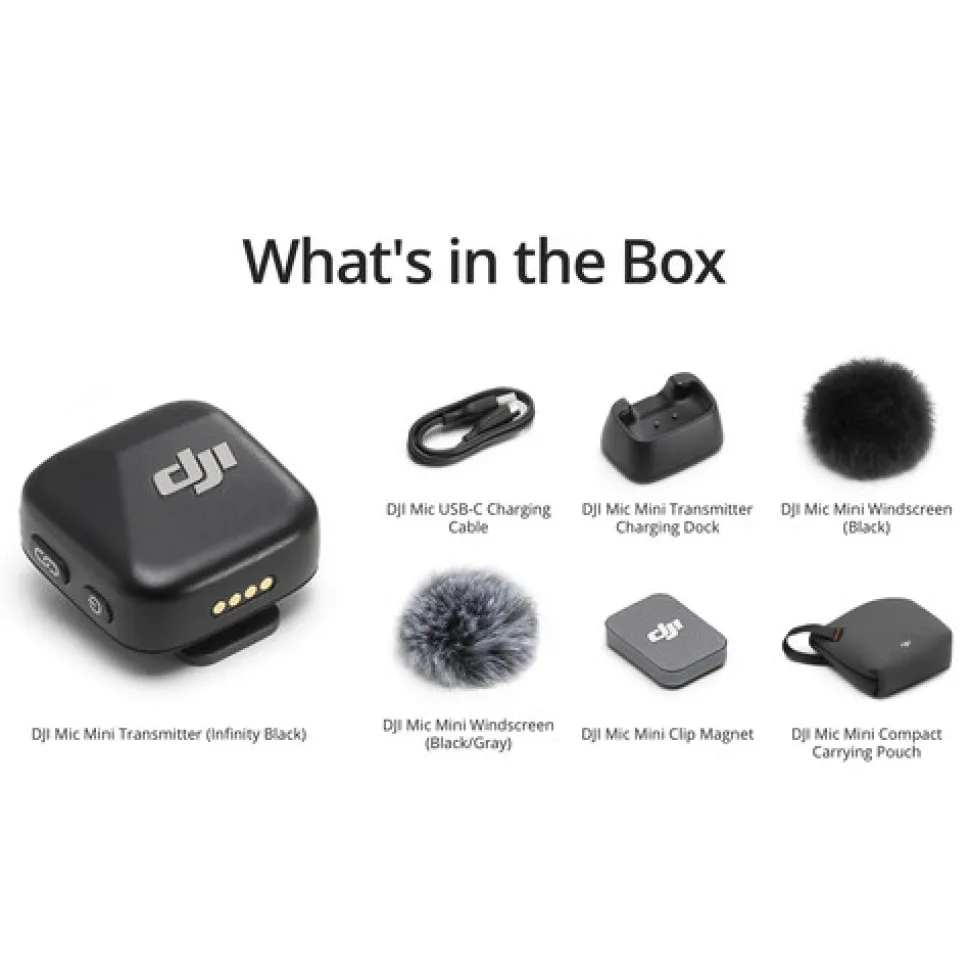

• Charging Dock, Built-In Battery

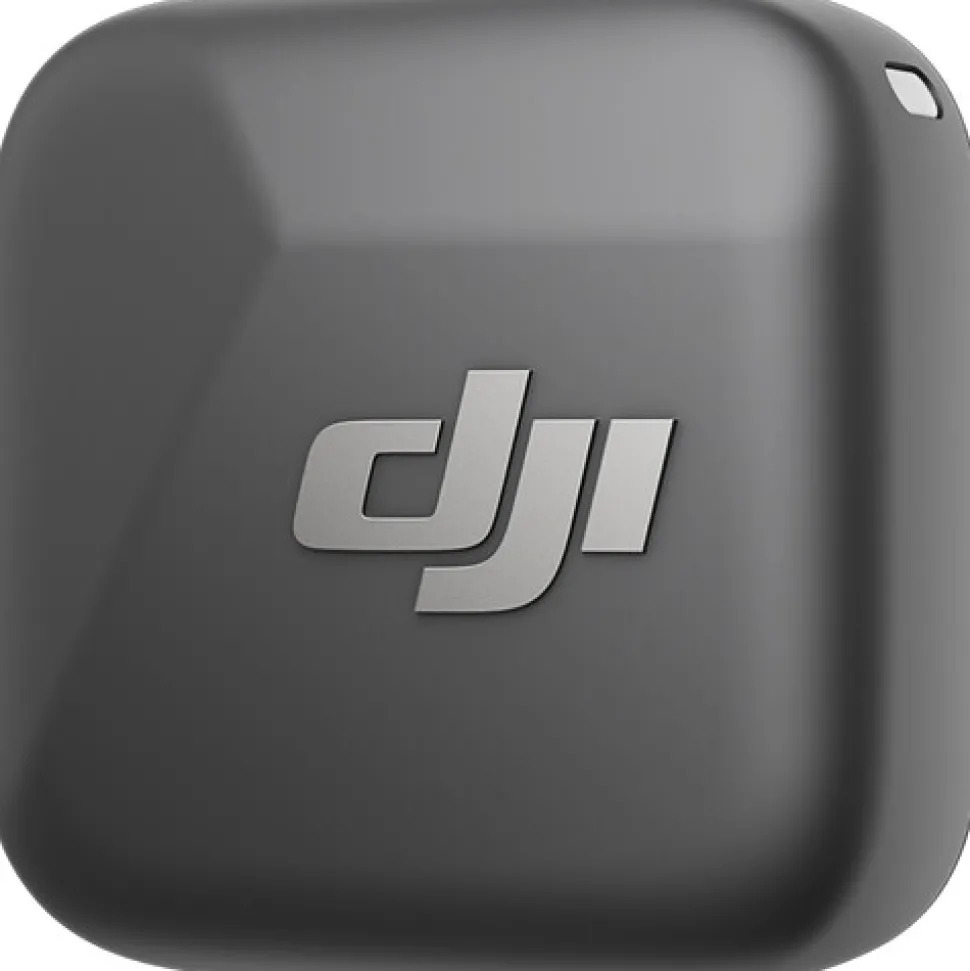

TheDJI Mic Mini Clip-On Transmitteris a black transmitter with a built-in microphone for seamless audio recording. Use in tandem with a separately available receiver, expand your preexisting Mic Mini wireless system, or connect to a mobile device/Osmo series camera via Bluetooth. The transmitter utilizes both 2.4 GHz digital and Bluetooth technology to communicate with the dual-channel receiver or your compatible Osmo camera from up to 1312′ away.

When the transmitter cannot detect a signal from the receiver unit, it automatically enters sleep mode to preserve battery life. The DJI Mimo app allows you to set a time of inactivity after which the transmitter unit will power completely off. Bluetooth connection with the Mimo app can toggle noise cancelling during video recording with compatible devices. A built-in rechargeable battery can run for up to 11.5 hours at a time and can be recharged with the included charging dock or separately available charging case.

Compatibility

DJI Osmo Action 4, Osmo Action 5 Pro
DJI Osmo Pocket 3

Max Operating Range 1312.3′ / 400m

Max Transmitters per Band 2

Built-In Recorder No

Timecode Support No

Mobile App Compatible Yes: Android & iOS

Bluetooth 5.3

Modulation GFSK

Transmitter Type Clip-On with Microphone

RF Output Power Not Specified by Manufacturer

Built-In Microphone Yes

Audio I/O No

Included Cable Connector No

Pad No

Auto-Level/Gain Yes

Frequency Response 20 Hz to 20 kHz

Sync Method 2.4 GHz QPSK

Power Requirements Battery

Battery Type 1x Built-In Rechargeable(Replaceable)

Internal Battery Capacity 114 mAh

Battery Charging Time 90 Minutes

Transmitter Battery Life 11.5 Hours (Lithium Rechargeable)

Display & Indicators LED

Operating Temperature 14 to 113°F / -10 to 45°C

Dimensions 1 x 1 x 0.6″ / 26.6 x 26.1 x 15.9mm

Weight 0.4oz / 10g

Microphone Type Built-In (Transmitter)

Color Black

Sound Field Mono

Polar Pattern Omnidirectional

Frequency Range 20 Hz to 20 kHz

Maximum SPL 120 dB SPL

Output Connector No
