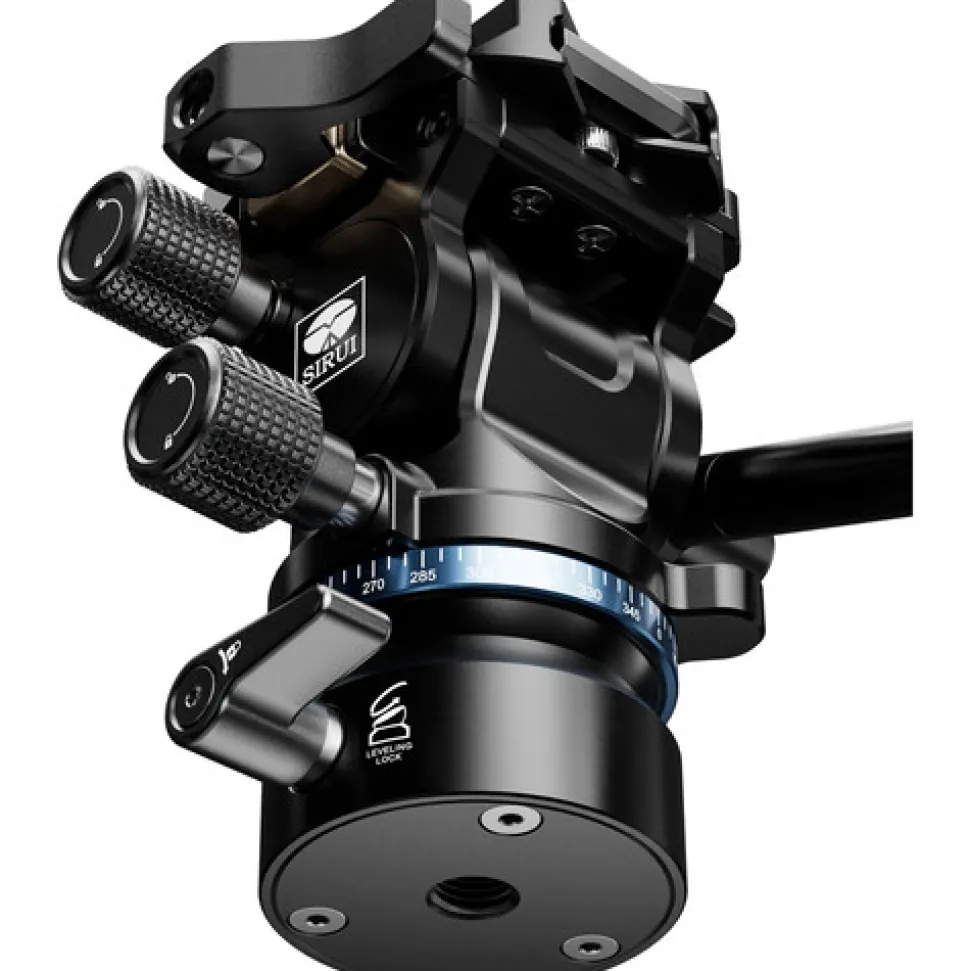

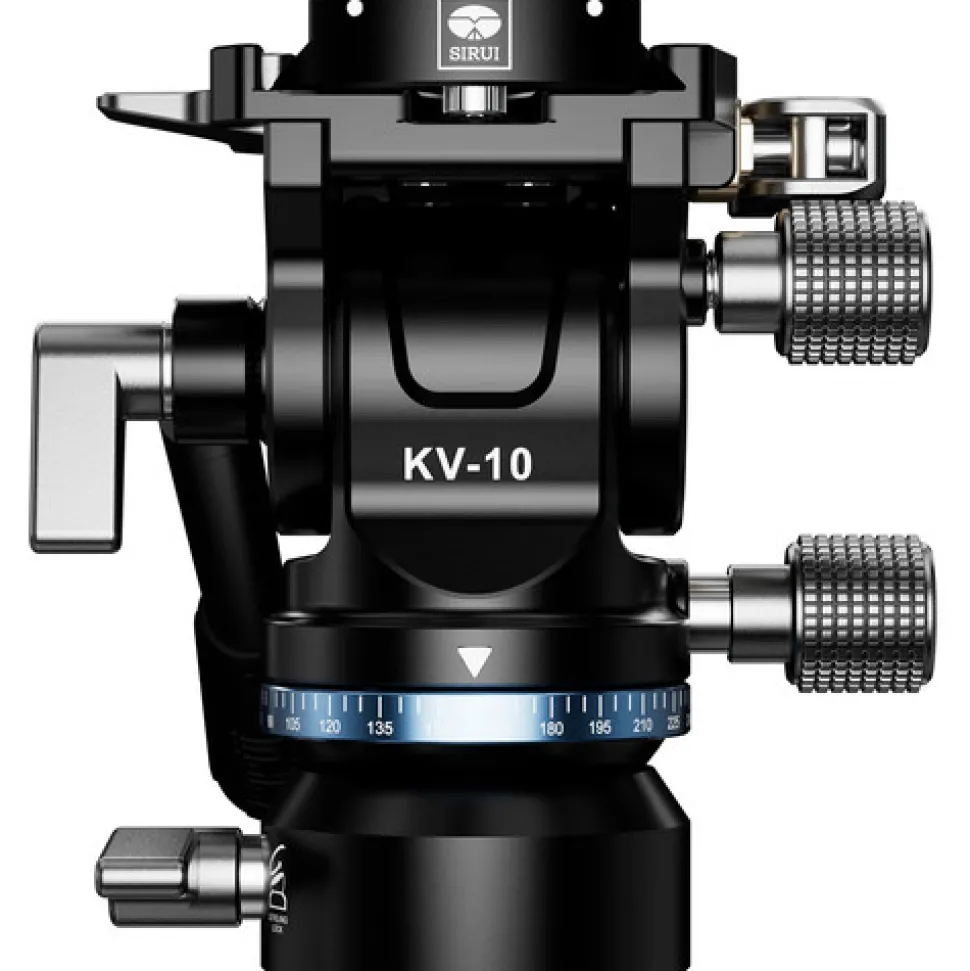

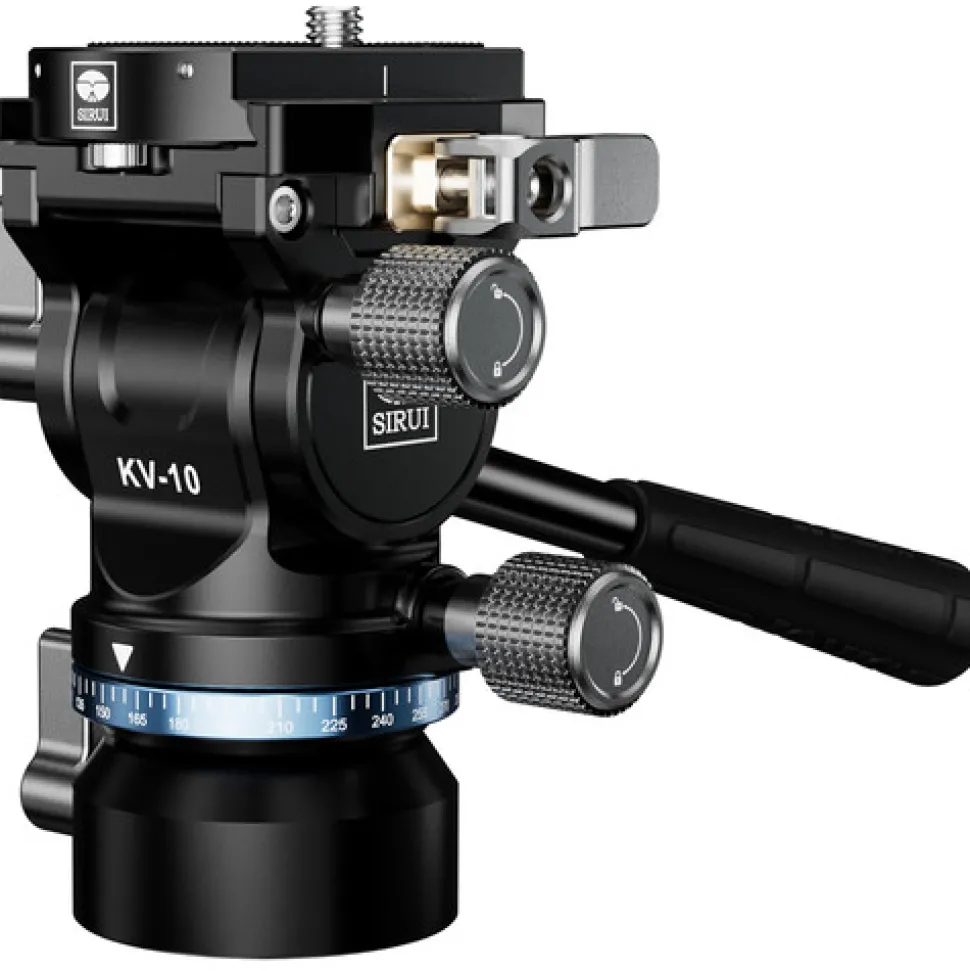

KV-10 Pan and Tilt Head with Leveling Base

AT A GLANCE

TheKV-10 Pan and Tilt Head with Leveling BasefromSiruiis a compact, lightweight head ideal for travel photography, vlogging, and vertical capture. It features a flat tripod base and an integrated ball base that provides up to 8° adjustment in any direction for rapid leveling. This aluminum alloy head also features a quick release plate with a secure, dual-lock system, a bubble level, a pan handle, and separate control knobs for pan, tilt, and drag. It weighs only 13.4 oz yet supports cameras weighing up to 11 lb and provides 90° tilt for portrait orientation and 360° pan.

Camera Attachment

Camera Mounting Screw 1x 1/4″-20 Male

Camera Plate Quick Release

Head

Head Type Ball Head

Base Mount Flat Base with 3/8″-16 Female

Counter Balance No

Head Dimensions Base Diameter: 1.7″ / 43.00mm
Depth: 2.4″ / 62.00mm
Width: 3.5″ / 90.00mm
Height: 3.9″ / 100.00mm

Pan & Tilt

Drag Control Yes

Independent Pan Lock Yes

Independent Tilt Lock Yes

Vertical Tilt +90° to -90°

Lateral Tilt No

General

Load Capacity 11lb / 5kg

Bubble Level Yes

Weight 13.4oz / 380g
