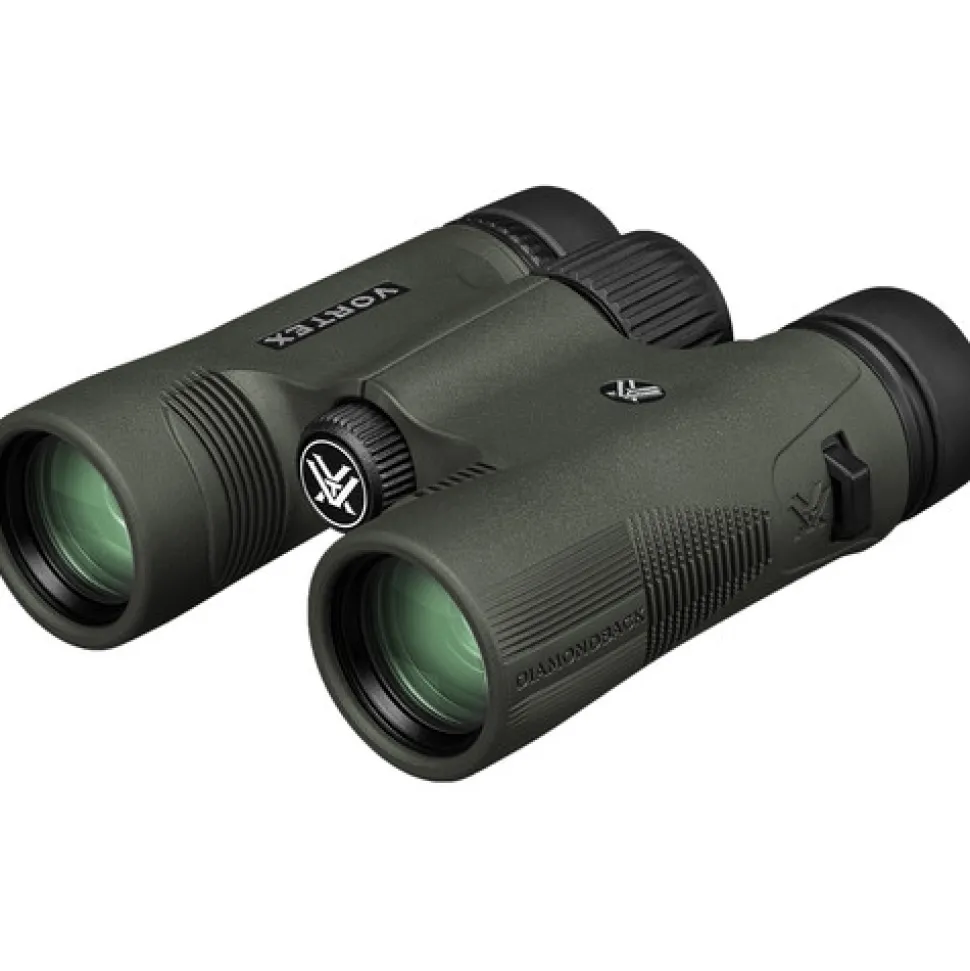

Diamondback 10×28 HD Binoculars

The Diamondback HD renders views with minimal chromatic aberration, exceptional color fidelity, edge-to-edge sharpness, and optimal light transmission through the use of high definition glass, an index-matched lens configuration, XR Plus lens coatings, and dielectric-coated, phase-correcting roof prisms. Minimum focus is a birding-friendly 6 feet. The lenses are protected from scratches, oil, and dust by ArmorTek exterior lens coating.

The housing is argon filled and sealed with O-rings to ensure reliable and durable protection against dust, debris, fog, and water. The binoculars are rubber armored to make them nonslip and offer durable protection. They are equipped with a large focusing knob that is easy to use even while wearing gloves. Naturally contoured to perfectly fit your hands, promoting comfort, and eliminating user fatigue, the Diamondback HD binoculars include a winning combination of features.

Optical Performance

• Roof prism design
• 10x magnification
• 28mm objective lenses
• Fully multi-coated lenses increase transmission, clarity, and brightness
• Dielectric-coated, phase-correcting roof prisms improve true color, contrast, and transmission
• 273′ linear field of view at 1000 yards
• 6′ close focus distance
• Exit pupil: 2.8mm
• Eye Relief: 16mm

Use and Handling

• Short-hinge bridge cuts weight and exposes more surface for handling
• Adjustable interpupillary distance: 55-72mm
• Oversized knurled center focusing wheel
• Textured diopter ring on right eyepiece
• Twist-up soft tapered rubber eyecups

Construction Details

• Protective rubber armor provides a slip-resistant grip
• O-ring sealed and argon-filled to be waterproof and resistant to internal fogging when moving through extreme temperatures and environmental conditions
• Scratch-resistant ArmorTek exterior lens coatings repel oils and corrosive materials from lenses

Prism Type Roof

Magnification 10x

Objective Lens Diameter 28 mm

Angle of View 5.1° (Actual)

Field of View 273′ @ 1000 yd / 90.64m @ 1000 m

Minimum Focus Distance 6′ / 1.83m

Exit Pupil Diameter 2.8mm

Eye Relief 16 mm

Interpupillary Adjustment 55 to 72mm / 2.2 to 2.8″

Diopter Adjustment Yes

Focus Type Center

Fogproof Yes, Argon Filled

Water Resistance Waterproof

Dimensions 4.6 x 4.5″ / 11.68 x 11.43cm

Weight 13.5oz / 383g
