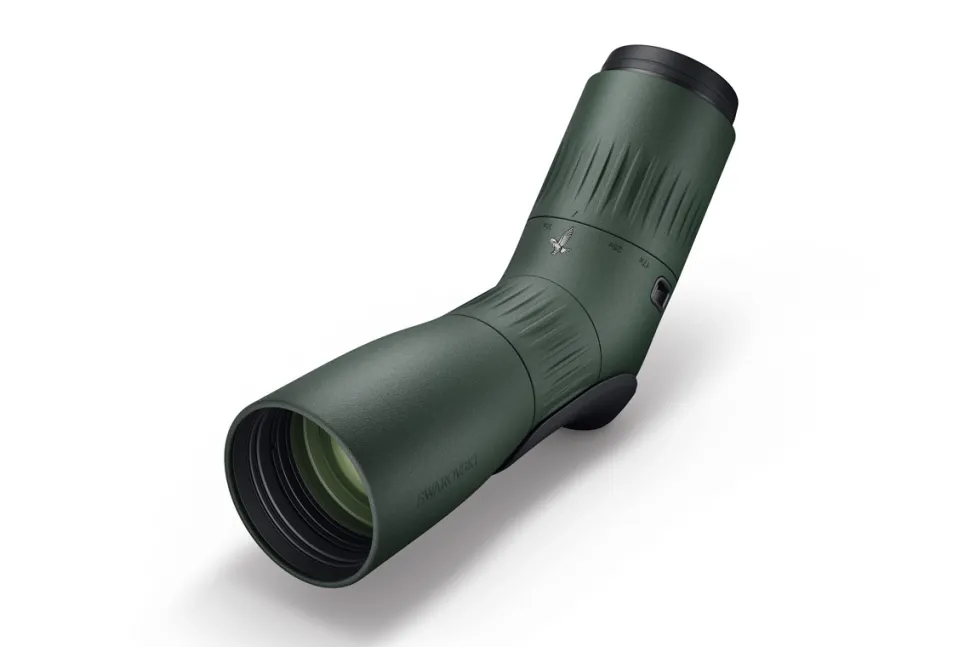

ATC 17-40×56 Green Spotting Scope Open Box

AT A GLANCE

Field flattener lenses deliver an almost flat, completely distortion-free image – right up to the edges.Pin-sharp contours, high-contrast, and true-to-life images, allow you to make out every detail.

Innovative lens coatings provide excellent color rendering with high light transmission.The ATC is constructed as a single unit and cannot be separated into eyepiece and objective modules

Magnification17-40x

Effective objective lens diameter56 mm

Exit pupil diameter (mm) 3.4-1.4

Eye Relief (mm) 20

Field of view (m/1,000 m/ft/1,000 yds) 62-34/186 -102

Field of view (degrees) 3.52-1.93

Field of view for eyeglass wearers (degrees) 3.52-1.93

Field of view, apparent (degrees) 57- 71

Shortest focusing distance (m/ft) 3.4/11.2

Diopter correction at ∞ (dpt) > 5

Light transmission (%) 88

Objective filter thread M58 x 0,75

Dimensions L x W x H (mm/in) 258 x 65 x 142/10.2 x 2.6 x 5.6

Approx. weight (g/oz) 970/34.2

Tripod connection thread 3/8“ (incl. adapter to 1/4“
