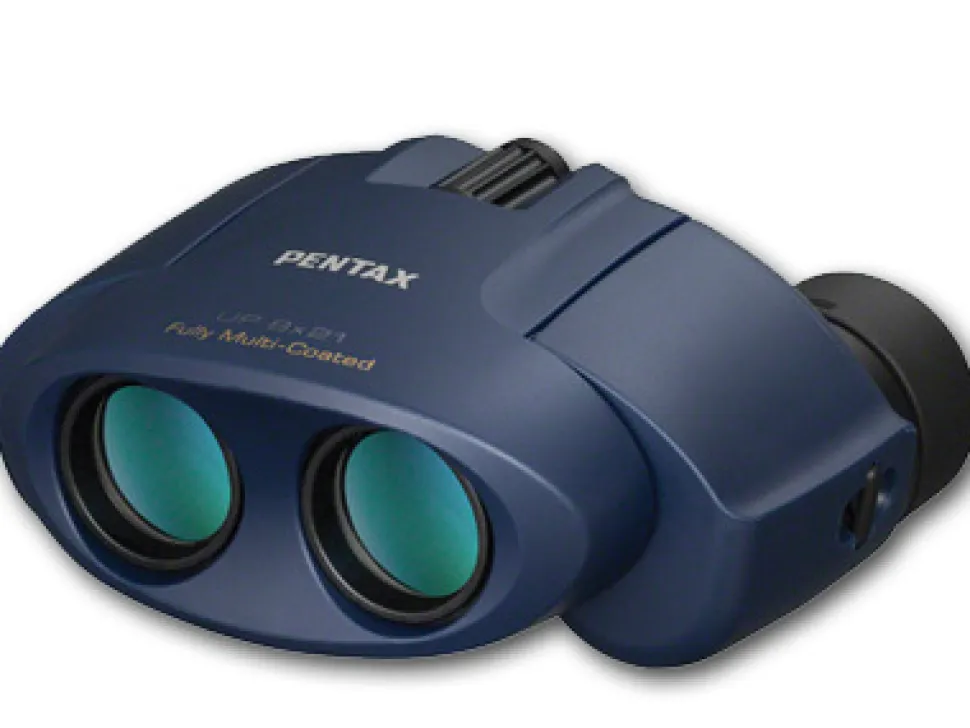

8×21 UP NAVY Binoculars

PRODUCT FEATURES

• Aspherical Lens Elements
• BAK4 Porro Prisms
• Fully Multicoated Optics
• Angle of View: 6.2°
• Centre Focusing
• Sliding Eyecupss

OVERVIEW

The compact and lightweight 8×21 UP Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a 50° angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With an 8x magnification and 21mm objectives, you obtain a notable magnification, insignificant image jitter due to unsteady hands, and a compact form factor. You can easily spot your targets with a wide 6.2° angular field of view and quickly bring them into focus with a center focus wheel. In addition to observing distant scenes, birds and game, the minimum focus of 9.2′ allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 2.6mm exit pupil, a 13mm eye relief, an interpupillary and a diopter adjustments.

The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate glass wearers, the binocular offers sliding rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers.

Optical Performance

• BAK4 Porro prisms
• Aspherical optical elements offer edge-to-edge image sharpness
• Fully multicoated optics
• Angular field of view: 6.2°
• Interpupillary adjustment
• Diopter adjustment

Construction Details

• Single piece objectives’ frame allows for a synchronized interpupillary adjustment
• Contoured body provides a comfortable grip
• Centre focus knob offers an easy focusing
• Sliding rubber eyecups

SPECIFICATIONS

Prism Type Porro
Magnification 8x
Objective Lens Diameter 21 mm
Angle of View 6.2° (actual)
Field-of-View 326′ @ 1000 yd / 108.23 m @ 1000 m
Minimum Focus Distance 9.24′ / 2.82 m
Exit Pupil Diameter 2.6 mm
Eye Relief 13 mm
Focus Type Centre
Dimensions 4.33 x 3.26 x 1.9″ / 11.00 x 8.28 x 4.83 cm
Weight 7.4 oz / 210 g
