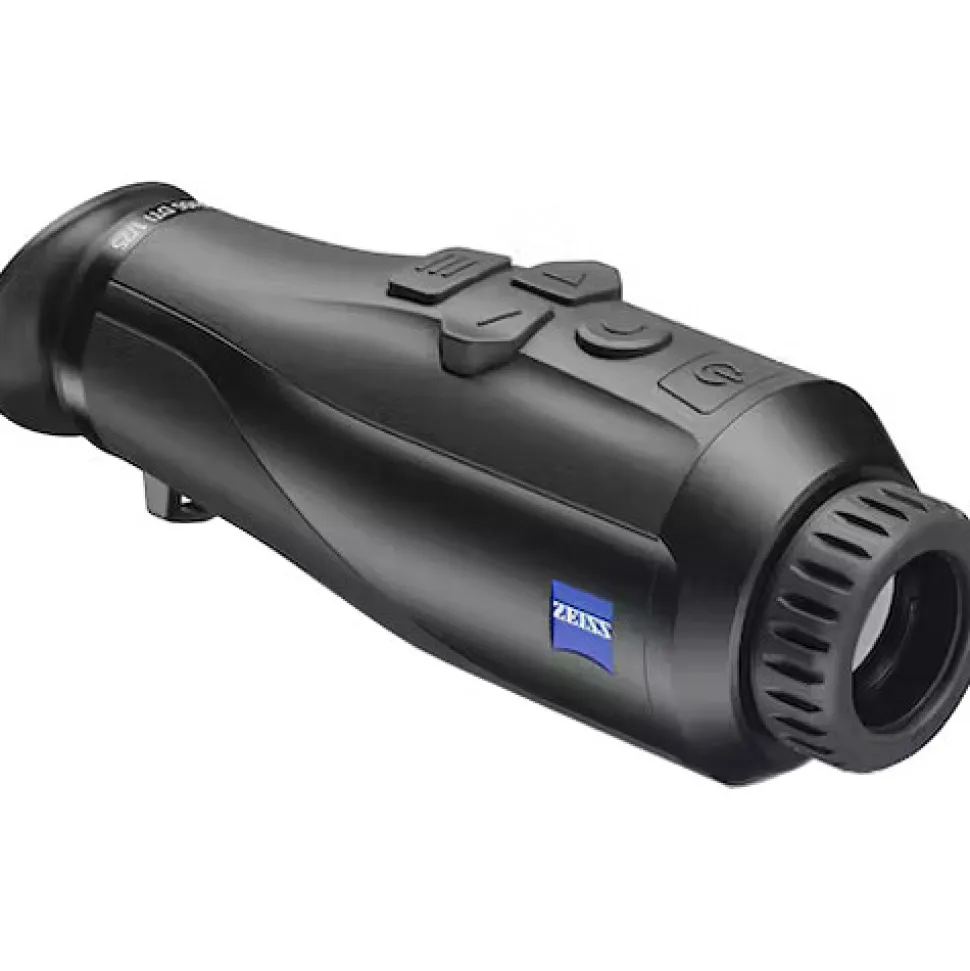

384 x 288 DTI 1/25 Digital Thermal Imaging Camera (50Hz)

PRODUCT HIGHLIGHTS

• 1443-Yard Viewing Range
• 4x Digital Zoom
• Transition Zoom
• Stream & Share via Zeiss Hunting App
• 1280 x 960 LCOS Display
• 8 Color Palettes
• Up to 6.5 Hours Runtime
• 25mm Focal Length, 11 x 8°° AoV
• 8GB Onboard Storage

The384 x 288 DTI 1/25 Digital Thermal Imaging CamerafromZEISSprovides the detailed imagery that is necessary when night hunting in forest settings. The monocular-style camera has a range of 1443 yards, with 2.5x optical magnification and 4x digital zoom for precise target identification. Imagery is displayed on a 1280 x 960 LCOS display, with eight color palettes and Transition Zoom, a smooth magnification increase for tightening the view from herd level to individual animal. The DTI 1/25 records up to 8GB of photos and video, but you can also share data via the built-in Wi-Fi to your phone running the ZEISS Hunting App. Powered by a rechargeable Li-ion battery, the camera has a runtime of up to 6.5 hours.

Ergonomic Design

The optimized shape of the housing makes the grip ergonomic and operation intuitive for both right-handed and left-handed users. The intelligent button arrangement and its optimized shape makes controlling the device intuitive.

Transition Zoom

Especially when viewing a herd, it is easy to lose sight of the animal being viewed when jumping the zoom level. Observe your target in 4x digital magnification, uninterrupted, and without jerkiness.

Detection Mode

Detection mode highlights heat sources while reducing the cold background. This allows you to see animals behind trees and bushes better than before.

8 Color Palettes

White hot, black hot, red hot, rainbow, red hue, green hue, dark hue, and night eye allow you to dial in the perfect view for the conditions.

PiP & Hot Tracking

You can use the Picture-in-Picture function to see a zoomed overlay on the original scene, which is helpful if your target makes sudden movements. The Hot Tracking mode puts a red box around the warmest source in your image, making it easier to find heat sources in densely overgrown areas.

Configuration Monocular

Sensor Size 384 x 288

Display 1280 x 960

Refresh Rate 50 Hz

Pixel Size 12 µm

Thermal Sensitivity <35 mK

Detection Range 1444.1yd / 1320m

Magnification Optical: 2.5x
Digital: 4x

Lens System 25 mm, f/1.0

Angle of View 11 x 8°

Storage 8 GB via Built-In Memory

Wireless Wi-Fi*Built-In

Inputs/Outputs 1x Unspecified USB

Battery Rechargeable

Operating Conditions 14 to 122°F / -10 to 50°C

Environmental Resistance Dust/Water-Resistant (IP66)

Dimensions 6.9 x 2.4 x 2.2″ / 17.5 x 6.1 x 5.6cm

Weight 12.7oz / 360g
