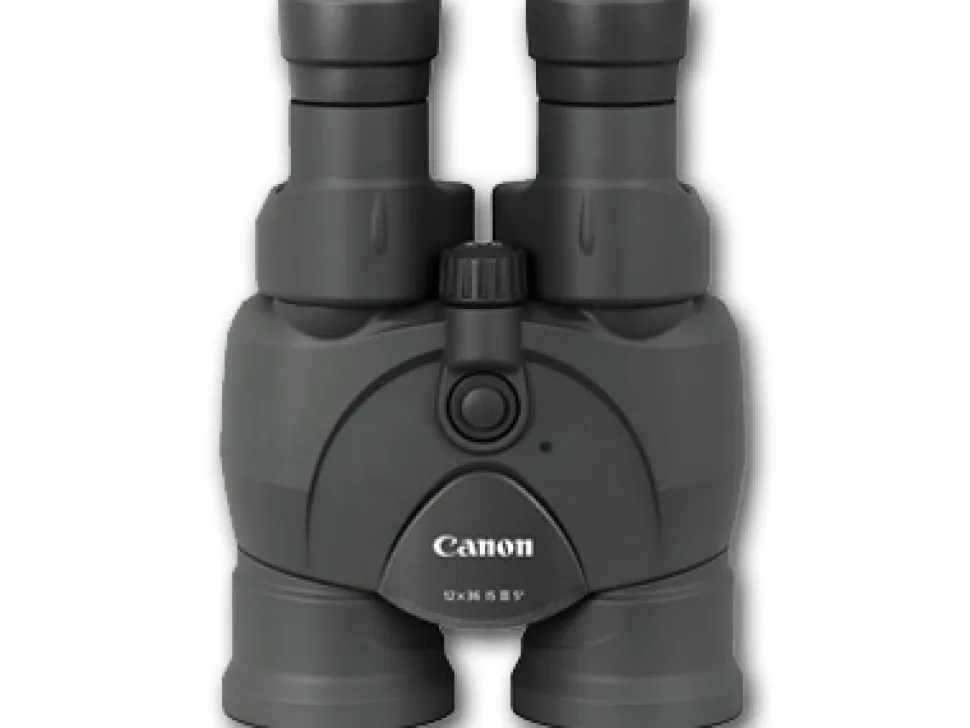

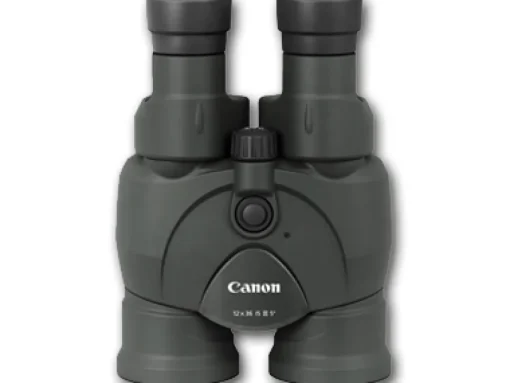

12×36 IS III Image Stabilized Binoculars

AT A GLANCE

• Vari-Angle Prism Image Stabilization
• Eco-Friendly Lead-Free Glass
• Super Spectra Multicoated Optics
• Doublet Field-Flattener Lenses
• Apparent Angle of View: 60°
• Centre Focus Wheel
• Runs on Two AA Alkaline / NiMh Batteries

DESCRIPTION

This is Canon’s third generation 12×36 IS III Image Stabilized Binocular features the proprietary IS system adapted from the lens systems to create this compact optic that compensates for hand-shake to make it ideal for a long day of bird or nature-watching and sporting events. Utilizing Vari-Angle prisms placed between the front lens and the main prism, when the internal gyro sensors vertical or horizontal detect movement they direct the prisms to compensate and correct for external the shaking to produce smoother views and panning. A microcomputer, outfitted with proprietary algorithms, enhances IS operation, aids shorter startup times, and enable more efficient energy consumption.

Beyond the image stabilization performance are optical features that improve image overall image quality. This begins with Canon’s anti-reflection Super Spectra multicoatings to reduce light loss and improve image contrast. Next, they employ a Porro prism optical path that provides a rich depth of field to enable users to better judge distance between objects and a comfortable long 14.5mm eye relief. A doublet field-flattener corrects spherical aberration for distortion-free views, especially at the edges, and wide angle 60° apparent angle of view deliver a truly immersive observational experience. The binocular runs on two included, and readily available, AA batteries that will power the optic for up to nine hours at 77°F. Designed for portability and ease-of-use, it measures in with a compact length of 6.9″ and weighs just over 23oz.

Optical Performance

• 12x magnification
• 36mm objective lenses
• Porro prism optical path
• Doublet field-flattener corrects spherical aberration for distortion-free views, especially at the edges
• Eco-friendly lead-free glass
• 262′ field of view at 1000 yd
• 60° apparent angle of view
• Two-element objective lenses in one group
• Five-element objective lenses in four groups

Use and Handling

• Centre focus wheel
• ±3 dioptric correction
• Long 14.5mm eye relief, 3mm exit pupil
• Runs on two AA alkaline or NiMh batteries
• Continuous runtime of approximately 9 hr at 77°F (25°C), or one hour at 14°F (10°C)

Image Stabilization

• ±1° stabilization freedom
• Vari-angle prism image stabilization system uses a combination of gyro sensors and microprocessor to adjust the angle for stabilization

SPECIFICATIONS

Prism Type Porro
Magnification 12x
Objective Lens Diameter 36mm
Angle of View 5° (actual)
Field-of-View 262′ @ 1000 yd / 86.98 m @ 1000 m
Minimum Focus Distance 19.69′ / 6.0 m
Exit Pupil Diameter 3.0 mm
Eye Relief 14.5 mm
Interpupillary Adjustment 55 – 75 mm / 2.17 – 2.95″
Dioptric Correction ±3
Stabilization Freedom ±1°
Focus Type Centre
Tripod Mount None
Dimensions 6.9 x 5.0 x 2.8″ / 17.53 x 12.70 x 7.11 cm
Weight 23.28 oz / 660 g
