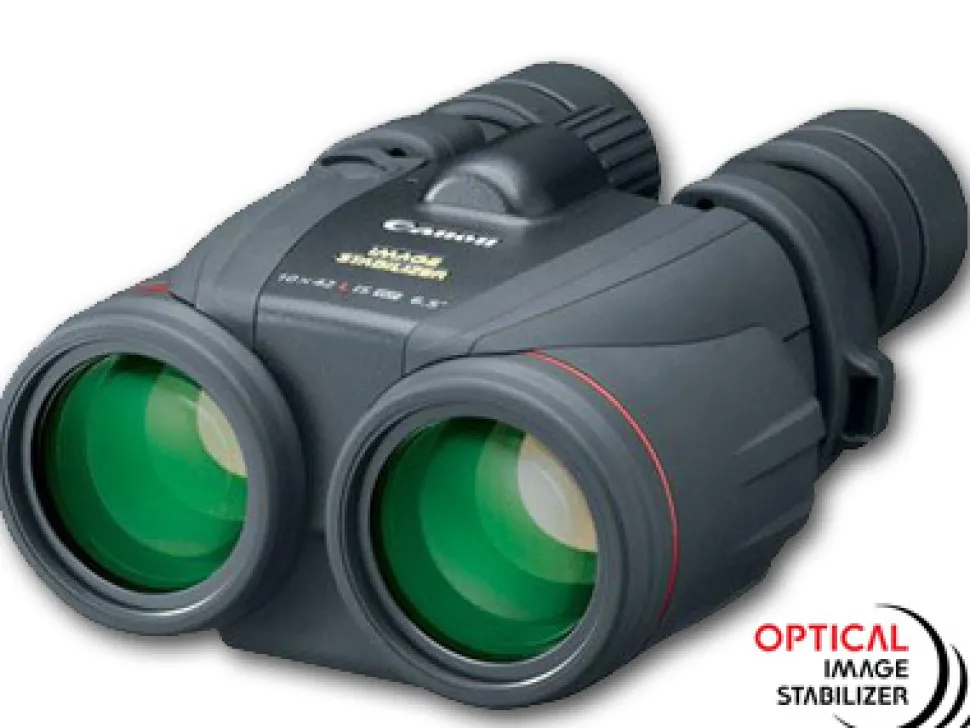

10x42L WP Image Stabilized Binoculars

Stabilzed … Waterproof … Superior Optics … WOW!

AT A GLANCE

• Electronic Image Stabilization
• Ultra-Low Dispersion Lead-Free Glass
• Porro Prism Optical Path
• Fully Super Spectra Coatings
• Wide 65° Apparent Viewing Angle
• Waterproof and Fogproof
• Large Center Focusing Knob
• Standard 1/4″-20 Tripod Mount
• Twist-Up Eyecups
• Runs on Two Included AA Batteries

DESCRIPTION

Outfitted with their proprietary Vari-Angle prism electronic image stabilization system, the Canon 10×42 L IS WP Image Stabilized Binocular is an ideal optic for bird and nature watching, marine use, or astronomical use. Its quick-response time and ±8.5° correction angle easily compensates for the common hand-shake that can make viewing through binoculars of this magnification difficult or disorientating. A single-activation button located precisely where the right forefinger naturally rests makes using them easy, and an optional 5-minute activation mode allows you to concentrate on viewing without distractions.

For increased usage, the L IS WP will work as a full-featured binocular when the image stabilization is not being used – even if the batteries are dead or removed. Optically, it is built with ultra-low dispersion (UD) glass elements and matching doublet field-flatteners, with their Super Spectra anti-reflection coatings to produce bright and clear high-contrast images without distortion across the entire wide field of view. Protecting the optics and electronics is an armoured chassis that benefits from ergonomically-designed grips, and a standard 1/4″-20 tripod mount socket for an even steadier view. Tethered front and rear lens caps, right-eye dioptric correction, twist-up eyecups, front filter threads, and a wide interpupillary adjustment range rounds out the features of this binocular that will become your go-to optic for any outdoor activity.

Optical Performance

• Works as a conventional binoculars even with batteries uninstalled
• 10x magnification
• 42mm objective lenses
• Porro prism optical path
• Ultra-low dispersion (UD) glass elements virtually eliminates chromatic and spherical aberration for high-contrast distortion-free images with true colour rendition
• Objective lens Construction: 4-elements/3-groups
• Eyepiece lens construction: 7-elements/5-groups
• Fully multi-coated optics using Canon’s proprietary Super Spectra Coating
• Doublet field-flatteners produce sharp, edge-to-edge distortion-free images
• Wide 65° apparent viewing angle
• 343′ field of view at 1000 yards
• Long 16mm eye relief
• Comfortable 4.2mm exit pupil

Image Stabilization

• Proprietary Vari-Angle prism electronic image stabilization
• ±0.8° correction angle
• Single activation button in natural position for right-forefinger use
• Convenient 5-minute continuous activation mode
• Battery-check indicator on start-up
• Runs on two included AA batteries
• Runtime:
  Lithium batteries: 8 h, max at 77°F; 3.5 h, max 14°F
  Ni-HN batteries: 6 h, max at 77°F; 2.5 h, max 14°F
  Alkaline batteries: 2.5 h, max at 77°F; 10 minutes, max 14°F

Use and Handling

• Large center focusing knob
• ±3 right-eye dioptric correction
• 57-75mm interpupillary distance adjustment range
• Twist-up eyecups for comfortable use with or without eyewear
• 52mm front objective filter threads
• 1/4″-20 tripod mounting socket

Construction Details

• Water and fogproof
• Operating temperature range: 14 to 113°F (-10 to 45°C), Humidity: 90%, relative
• Environmentally-friendly lead-free optical glass
• Tethered ocular and objective lens caps
• Weight: 39.2 ounces, without batteries

SPECIFICATIONS

Prism Type Porro
Magnification 10x
Objective Lens Diameter 42mm
Angle of View 6.5° (actual)
Field-of-View 343.4′ @ 1000 yd / 114.0 m @ 1000 m
Minimum Focus Distance 8.20′ / 2.5 m
Exit Pupil Diameter 4.2 mm
Eye Relief 16.0 mm
Interpupillary Adjustment 57.0 – 75.0 mm / 2.2 – 3.0″
Dioptric Correction ±3
Stabilization Freedom ±8.0°
Focus Type Center
Tripod Mount Yes
Dimensions 6.93 x 5.39 x 3.35″ / 17.6 x 13.7 x 8.5 cm
Weight 2.4 lb / 1.1 kg without batteries
