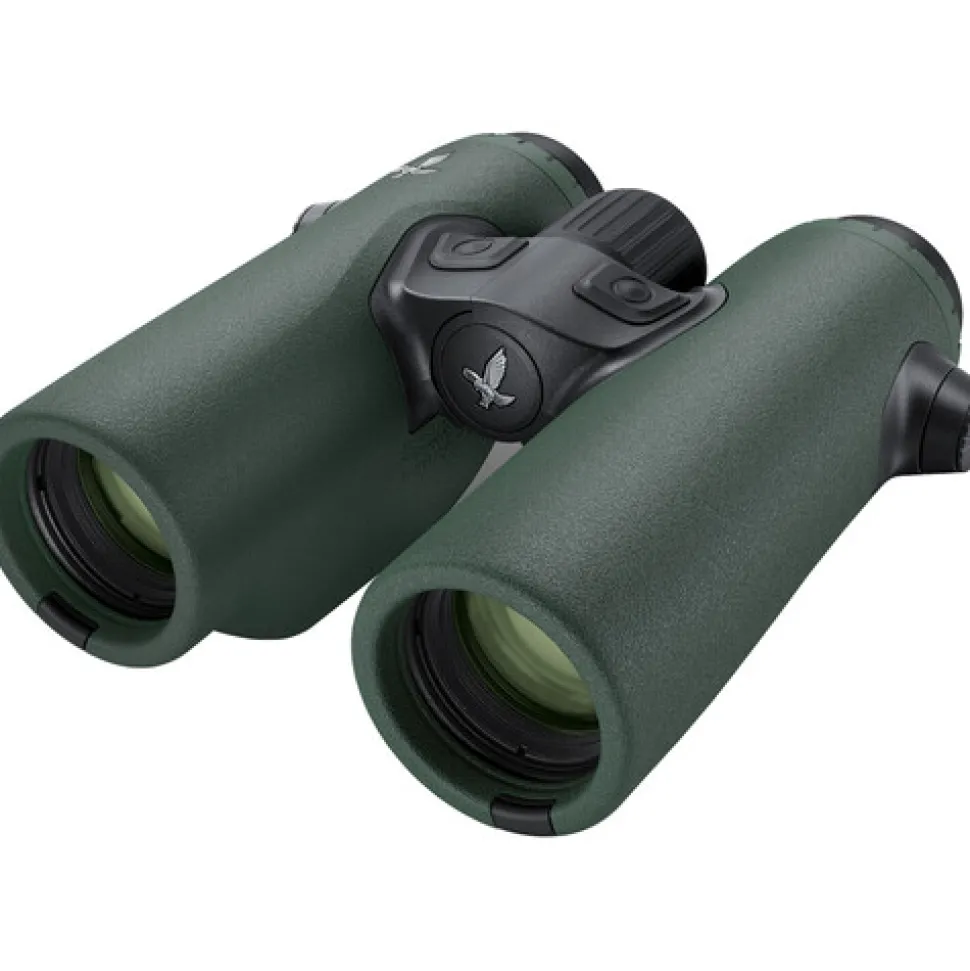

10×32 EL Range Laser Rangefinder Binocular (Green)

Optimized for hunting, these green10×32 EL Range Laser Rangefinder Binoculars with Tracking Assistantcombine premiumSwarovskioptics with high-tech tools for a successful day in the field. Spot your target with SWAROVISION edge-to-edge sharpness with a generous field of view and measure its range up to 2200 yards away. Combine range, angle, and atmospheric readings with your personal ballistic data, uploaded via Bluetooth, for corrected shooting distance. .

The EL Range employs an eye-safe Class 1 laser for accuracy within one yard when ranging out to 1500 yards, and with the reading displayed in the right tube in half a second. Range stationary targets in one-off mode and moving targets in scan mode. The optic measures angles (up to 90°), temperature, and air pressure, which, when merged with the details of your cartridge, displays shooting distance or necessary correction value down to the number of clicks required. The SWAROVISION design of lenses and coatings yields a 419′ field of view at 1000 yards, with 90% light transmission for a bright, crisp image that has accurate colors. A single button activates the rangefinder and provides access to all the features, functions, and settings.

To withstand the rigors of a life lived outdoors, the EL Range features a lightweight and durable housing filled with inert gas for fogproof performance and is submersible to a depth of 13′. Included are lens covers, a field bag with strap, a neck strap, and a cleaning kit.

Optical Performance

• 10x Magnification for long-range observation with minimal shake
• 42mm objective lenses boost light-gathering capability to keep views bright, even in challenging light conditions
• Roof prism optical path maintains a compact form factor for easier handling
• SWAROVISION coatings increase light transmission and enhance color fidelity
• Spacious 419′ field of view at 1000 yd

Laser Rangefinder

• In-view LCD display
• Class 1 laser
• Built-in inclinometer measures relative angle to target, ±90°
• Measurements displayed in yards or meters
• Measuring range: 10-2200 yards
• Measuring accuracy: ±1 yard out to 1500 yards
• Measuring time: 0.5 second
• Single-measurement and continuous-scan modes
• Calculates angle, temperature, and air pressure
• Upload up to three personal ballistic profiles for corrected shooting range
• Tracking Assistant narrows down location of game after successful shot
• Five brightness levels

Use and Handling

• Open-bridge/dual-hinge configuration reduces weight without sacrificing strength
• Large, knurled center focus wheel is easy to manipulate in cold and wet weather, or while wearing gloves
• Dual locking -7/+5 dioptric correction rings enables ultra-fine tuning of the focusing system to ensure crisp and tack-sharp views
• 56-74mm interpupillary adjustment range makes them easy to use by a wide variety of users
• Electronic dioptric compensation adjustment mode

Construction Details

• Inert gas filled, fogproof, and submersible to 13′
• Broad -13 to 131°F operating temperature range
• Uses one CR2 battery, runtime up to 2000 hours

Laser Type Class 1 Eye Safe

Metering Range 10 to 2200yd / 9.1 to 2011.7m

Accuracy 1500yd / 1371.6m: 1yd / 0.9m

Prism Type Roof

Magnification 10x

Objective Lens Diameter 32 mm

Angle of View 61° (Apparent)

Field of View 419′ @ 1000 yd / 139.1m @ 1000 m

Minimum Focus Distance 16.4′ / 5m

Exit Pupil Diameter 3.2mm

Eye Relief 16 mm

Dioptric Correction -7 / ±5

Power Source1 xCR2

Interpupillary Adjustment 56 to 74mm / 2.2 to 2.9″

Display Type LCD

Inclinometer Maximum Angle: 90°

Environmental Protection Advertised as Water Resistant
*Test Methodology Not Supplied

Fogproof Yes

Operating Temperature 22 to 87°F / -10 to 55°C

Storage Temperature -22 to 158°F / -30 to 70°C

Dimensions 5.6 x 5.2 x 2.7″ / 14.3 x 13.1 x 6.9cm

Weight 24.0oz / 680.0g
